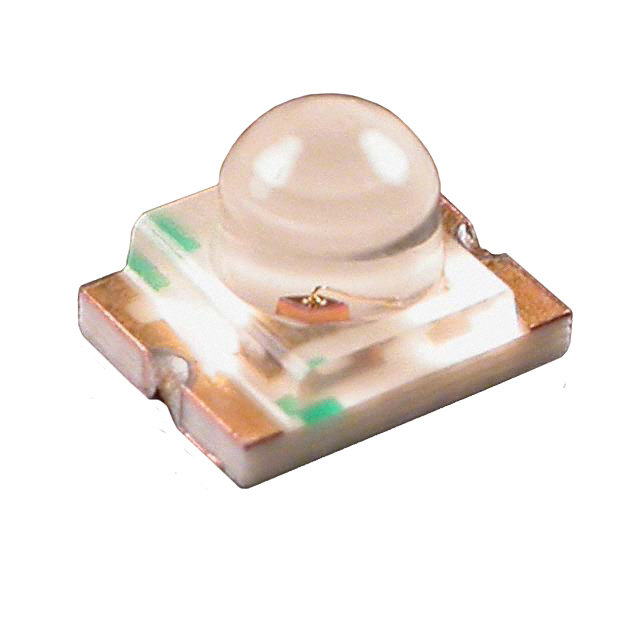

Specification	APD3224PBC/A-F01

Color	Blue
Configuration	Standard
Current - Test	20 mA
Height (Max)	2.4 mm
Lens Color	Colorless
Lens Diameter	1.8 mm
Lens Style	Round, Domed Top
Lens Transparency	Clear
Millicandela Rating	380 mcd
Mounting Type	Surface Mount
Package / Case	1210 (3225 Metric)
Package Name	SMD
Size / Dimension Length	3.2 mm
Size / Dimension Width	2.4 mm
Viewing Angle	20 °
Voltage - Forward (Vf) (Typ)	3.2 V
Wavelength - Dominant	470 nm
Wavelength - Peak	468 nm

APD3224 Series

Part	Lens Color	Package Name	Configuration	Lens Style	Wavelength - Dominant	Lens Transparency	Millicandela Rating	Package / Case	Height (Max)	Color	Mounting Type	Current - Test	Viewing Angle	Size / Dimension Length	Size / Dimension Width	Wavelength - Peak	Voltage - Forward (Vf) (Typ)	Lens Diameter
Kingbright APD3224PBC/A-F01	Colorless	SMD	Standard	Domed Top Round	470 nm	Clear	380 mcd	1210 (3225 Metric)	2.4 mm	Blue	Surface Mount	20 mA	20 °	3.2 mm	2.4 mm	468 nm	3.2 V	1.8 mm
Kingbright APD3224SGC-F01	Colorless	SMD	Standard	Domed Top Round	568 nm	Clear	100 mcd	1210 (3225 Metric)	2.4 mm	Green	Surface Mount	20 mA	20 °	3.2 mm	2.4 mm	565 nm	2.2 V	1.7 mm
Kingbright APD3224CGCK-F01	Colorless	SMD	Standard	Domed Top Round	570 nm	Clear	600 mcd	1210 (3225 Metric)	2.4 mm	Green	Surface Mount	20 mA	20 °	3.2 mm	2.4 mm	574 nm	2.1 V	1.7 mm
Kingbright APD3224SECK-F01	Colorless	SMD	Standard	Domed Top Round	601 nm	Clear	1600 mcd	1210 (3225 Metric)	2.4 mm	Orange	Surface Mount	20 mA	20 °	3.2 mm	2.4 mm	610 nm	2.1 V	1.7 mm
Kingbright APD3224SYCK-F01	Colorless	SMD	Standard	Domed Top Round	590 nm	Clear	1300 mcd	1210 (3225 Metric)	2.4 mm	Yellow	Surface Mount	20 mA	20 °	3.2 mm	2.4 mm	590 nm	2 V	1.7 mm
Kingbright APD3224ZGC-F01	Colorless	SMD	Standard	Domed Top Round	525 nm	Clear	3000 mcd	1210 (3225 Metric)	2.4 mm	Green	Surface Mount	20 mA	20 °	3.2 mm	2.4 mm	515 nm	3.3 V	1.7 mm
Kingbright APD3224QBC/D-F01	Colorless	Chip LED	Standard	Domed Top Round	465 nm	Clear	900 mcd	2-SMD No Lead	2.4 mm	Blue	Surface Mount	20 mA	20 °	3.2 mm	2.4 mm	460 nm	3.3 V	1.7 mm
Kingbright APD3224EC-F01	Colorless	SMD	Standard	Domed Top Round	617 nm	Clear	60 mcd	1210 (3225 Metric)	2.4 mm	Red	Surface Mount	20 mA	20 °	3.2 mm	2.4 mm	627 nm	2 V	1.7 mm
Kingbright APD3224ZGCK-F01	Colorless	2-SMD	Independent	Domed Top Round	525 nm	Clear	5.8 cd	1210 (3225 Metric)	2.5 mm	Green	Surface Mount	20 mA	20 °	3.2 mm	2.4 mm	515 nm	3.3 V	1.7 mm
Kingbright APD3224YC-F01	Colorless	SMD	Standard	Domed Top Round	588 nm	Clear	50 mcd	1210 (3225 Metric)	2.4 mm	Yellow	Surface Mount	20 mA	20 °	3.2 mm	2.4 mm	590 nm	2.1 V	1.7 mm
