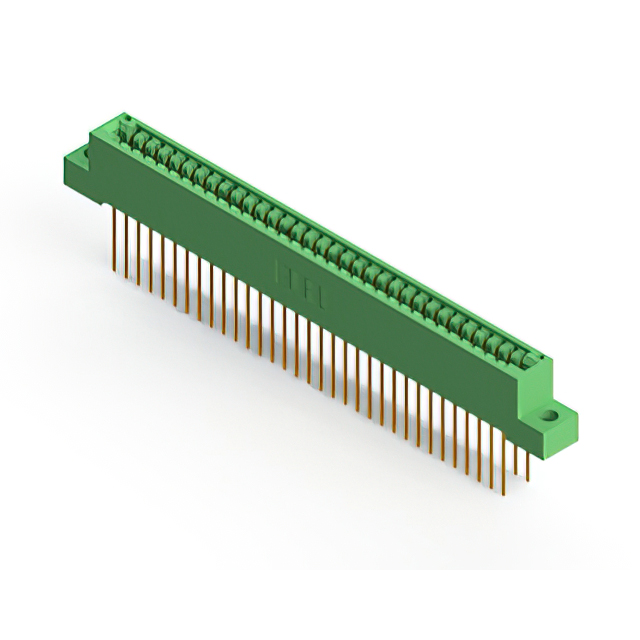

846-066-541-204

Active

EDAC Inc.

CONN EDGE DUAL FMALE 66POS 0.125

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

846-066-541-204

Active

EDAC Inc.

CONN EDGE DUAL FMALE 66POS 0.125

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	846-066-541-204

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.96 mm
Flange Feature [diameter]	0.156 in
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	66
Number of Positions/Bay/Row [custom]	33
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.125 in
Pitch [x]	3.18 mm
Read Out	Dual
Termination	Wire Wrap
Termination Rows	2

846-066 Series

...

Part	Contact Finish Thickness	Contact Finish Thickness	Termination	Pitch [x]	Pitch [x]	Termination Rows	Card Type	Material - Insulation	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Color	Contact Type	Number of Positions	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Gender	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Mounting Type	Number of Positions/Bay/Row [custom]	Contact Finish	Read Out	Features
EDAC Inc. 846-066-520-203	10 Áin	0.25 Ám	Solder	0.125 in	3.18 mm	2	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	0.116 in	Floating Bobbin Flush Mount	2.95 mm	Green	Cantilever	66	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	2	125 °C	-40 °C	Copper Alloy	Through Hole	33	Gold	Dual
EDAC Inc. 846-066-560-807	10 Áin	0.25 Ám	Solder	0.125 in	3.18 mm	2	Non Specified - Dual Edge	Diallyl Phthalate (DAP)		M3 Threaded Insert Top Mount Opening		Green	Cantilever	66	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	2	125 °C	-40 °C	Copper Alloy	Board Edge Straddle Mount	33	Gold	Dual	Card Extender
EDAC Inc. 846-066-500-808	10 Áin	0.25 Ám	Solder Eyelet(s)	0.125 in	3.18 mm	2	Non Specified - Dual Edge	Diallyl Phthalate (DAP)		4-40 Threaded Insert Top Mount Opening		Green	Cantilever	66	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	2	125 °C	-40 °C	Copper Alloy	Through Hole	33	Gold	Dual
EDAC Inc. 846-066-526-803	10 Áin	0.25 Ám	Solder	0.125 in	3.18 mm	2	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	0.116 in	Floating Bobbin Top Mount Opening	2.95 mm	Green	Cantilever	66	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	2	125 °C	-40 °C	Copper Alloy	Through Hole	33	Gold	Dual
EDAC Inc. 846-066-555-203	10 Áin	0.25 Ám	Solder Eyelet(s)	0.125 in	3.18 mm	2	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	0.116 in	Floating Bobbin Flush Mount	2.95 mm	Green	Cantilever	66	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	2	125 °C	-40 °C	Copper Alloy	Board Edge Straddle Mount	33	Gold	Dual	Card Extender
EDAC Inc. 846-066-560-808	10 Áin	0.25 Ám	Solder	0.125 in	3.18 mm	2	Non Specified - Dual Edge	Diallyl Phthalate (DAP)		4-40 Threaded Insert Top Mount Opening		Green	Cantilever	66	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	2	125 °C	-40 °C	Copper Alloy	Board Edge Straddle Mount	33	Gold	Dual	Card Extender
EDAC Inc. 846-066-541-204	10 Áin	0.25 Ám	Wire Wrap	0.125 in	3.18 mm	2	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	0.156 in	Flush Mount Top Opening Unthreaded	3.96 mm	Green	Cantilever	66	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	2	125 °C	-40 °C	Copper Alloy	Through Hole	33	Gold	Dual
EDAC Inc. 846-066-521-204	10 Áin	0.25 Ám	Solder	0.125 in	3.18 mm	2	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	0.156 in	Flush Mount Top Opening Unthreaded	3.96 mm	Green	Cantilever	66	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	2	125 °C	-40 °C	Copper Alloy	Through Hole	33	Gold	Dual
EDAC Inc. 846-066-500-804	10 Áin	0.25 Ám	Solder Eyelet(s)	0.125 in	3.18 mm	2	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	0.156 in	Top Mount Opening Unthreaded	3.96 mm	Green	Cantilever	66	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	2	125 °C	-40 °C	Copper Alloy	Through Hole	33	Gold	Dual
EDAC Inc. 846-066-556-808	10 Áin	0.25 Ám	Solder	0.125 in	3.18 mm	2	Non Specified - Dual Edge	Diallyl Phthalate (DAP)		4-40 Threaded Insert Top Mount Opening		Green	Cantilever	66	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	2	125 °C	-40 °C	Copper Alloy	Board Edge Straddle Mount	33	Gold	Dual	Card Extender

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 51.73
Newark	Each	1	$ 70.36
		100	$ 41.86
		250	$ 36.95
		500	$ 33.95
		1000	$ 29.25

Description

General part information

846-066 Series

66 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Green
