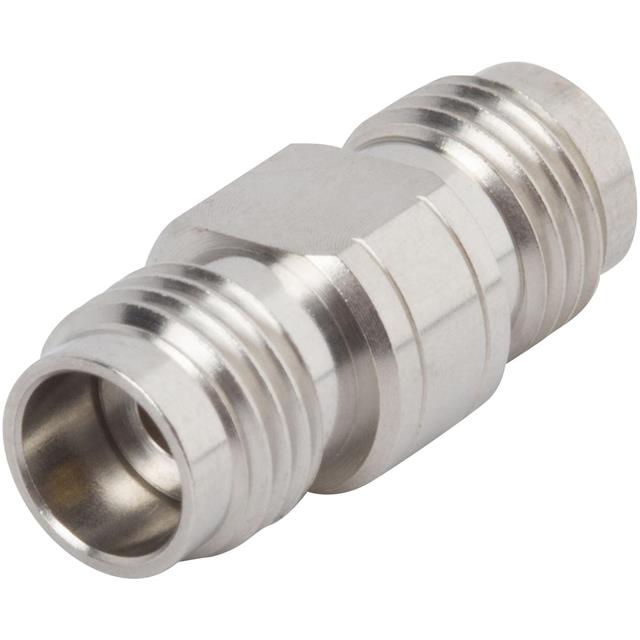

SF1116-6053

Active

Amphenol SV Microwave

CONN 2.4MM ADAPTER 0HZ TO 50GHZ 50OHM ST RCP/RCP GOLD OVER NICKEL TRAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SF1116-6053

Active

Amphenol SV Microwave

CONN 2.4MM ADAPTER 0HZ TO 50GHZ 50OHM ST RCP/RCP GOLD OVER NICKEL TRAY

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SF1116-6053

Adapter Series [Max]	2.4 mm
Adapter Series [Min]	2.4 mm
Adapter Type	Jack to Jack
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	2.4 mm
Convert To (Adapter End)	2.4 mm
Dielectric Material	Polyetherimide (PEI)
Frequency - Max [Max]	50 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Style	Straight

SF1116 Series

Part	Convert To (Adapter End)	Fastening Type	Body Material	Center Contact Plating	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Material	Center Gender	Adapter Series	Adapter Series	Frequency - Max [Max]	Features	Convert From (Adapter End)	Impedance	Dielectric Material	Adapter Type	Style	Mating Cycles	Conversion Type	Mounting Type	Adapter Series [Max]	Adapter Series [Min]	Convert To (Adapter End)	Convert From (Adapter End)
Amphenol SV Microwave SF1116-6024	Male Pin SMPS Plug	Snap-On Threaded	Stainless Steel	Gold	165 °C	-55 °C	Beryllium Copper	Male to Male	2.4 mm	SMPS	50 GHz	Full Detent	2.4 mm	50 Ohms	Polyetherimide (PEI)	Plug to Plug	Straight	500	Between Series	Free Hanging (In-Line)
Amphenol SV Microwave SF1116-6007	2.92mm (OS-2.9) Plug Male Pin		Stainless Steel	Gold			Beryllium Copper	Male to Male			40 GHz		2.4 mm	50 Ohms	Polyetherimide (PEI)	Plug to Plug	Straight	500	Between Series	Free Hanging (In-Line)	2.92 mm	2.4 mm
Amphenol SV Microwave SF1116-6002	OS-2.9 Jack Female Socket		Stainless Steel	Gold			Beryllium Copper				40 GHz		2.4 mm	50 Ohms	Polyetherimide (PEI)	Plug to Jack	Straight	500	Between Series	Free Hanging (In-Line)	2.92 mm	2.4 mm	2.92 mm
Amphenol SV Microwave SF1116-6021		Snap-On Threaded	Stainless Steel	Gold	165 °C	-65 ░C	Beryllium Copper		2.4 mm	SMPS	50 GHz	Full Detent		50 Ohms	Polytetrafluoroethylene (PTFE)	Plug to Jack	Straight		Between Series	Free Hanging (In-Line)			2.4 mm	SMPS Plug Male Pin
Amphenol SV Microwave SF1116-6040			Stainless Steel	Gold			Beryllium Copper				50 GHz		2.4 mm	50 Ohms	Polyetherimide (PEI)	Plug to Jack	Straight	500	Same Series	Free Hanging (In-Line)	2.4 mm	2.4 mm	2.4 mm
Amphenol SV Microwave SF1116-6053			Stainless Steel	Gold			Beryllium Copper	Female to Female			50 GHz		2.4 mm	50 Ohms	Polyetherimide (PEI)	Jack to Jack	Straight	500	Same Series	Free Hanging (In-Line)	2.4 mm	2.4 mm	2.4 mm
Amphenol SV Microwave SF1116-6014		Snap-On Threaded	Stainless Steel	Gold	165 °C	-65 ░C	Beryllium Copper		2.4 mm	SMP	40 GHz	Full Detent		50 Ohms	Polychlorotrifluoroethylene (PCTFE) Polytetrafluoroethylene (PTFE)	Plug to Jack	Straight		Between Series	Free Hanging (In-Line)			2.4 mm	SMP Plug Male Pin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 258.13
		10	$ 239.20
		25	$ 230.59

Description

General part information

SF1116 Series

Adapter Coaxial Connector 2.4mm (APC-2.4, OS-50) Jack, Female Socket To 2.4mm (APC-2.4, OS-50) Jack, Female Socket 50 Ohms
