429-10-250-00-560000

Active

Mill-Max Manufacturing Corp.

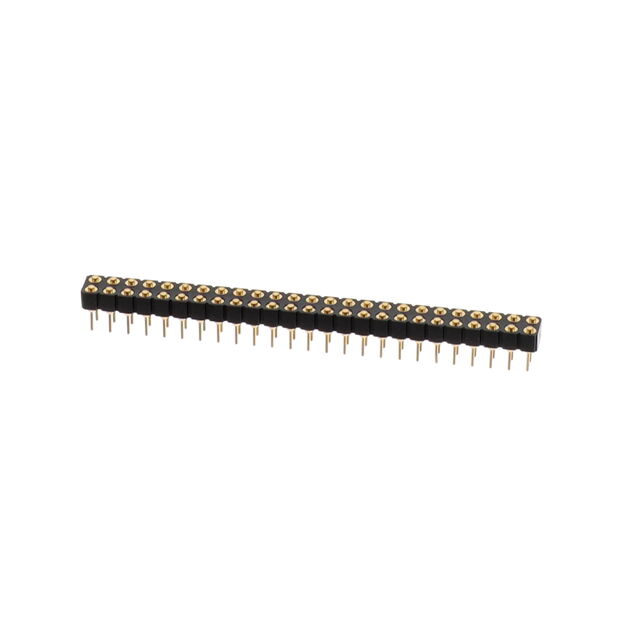

CONN HEADER SMD 50POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

429-10-250-00-560000

Active

Mill-Max Manufacturing Corp.

CONN HEADER SMD 50POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	429-10-250-00-560000

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	10 çin
Contact Finish Thickness - Post	0.25 çm
Contact Length - Mating	0.121 in
Contact Length - Mating	3.07 mm
Contact Material	Brass Alloy
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Material	Thermoplastic
Mounting Type	Surface Mount
Number of Positions	50
Number of Positions Loaded	All
Number of Rows	2
Overall Contact Length	7 mm
Overall Contact Length	0.276 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder

429-10 Series

Part	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Shrouding	Connector Type	Contact Finish - Post	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Overall Contact Length	Overall Contact Length	Contact Material	Insulation Material	Insulation Color	Contact Type	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Fastening Type	Number of Rows	Pitch - Mating	Pitch - Mating	Number of Positions	Termination	Mounting Type	Contact Finish - Mating	Number of Positions
Mill-Max Manufacturing Corp. 429-10-218-00-560000	2.54 mm	0.1 in	Unshrouded	Header	Gold	All	10 çin	0.25 çm	7 mm	0.276 in	Brass Alloy	Thermoplastic	Black	Male Pin	0.121 in	3.07 mm	10 çin	0.25 çm	Circular	Push-Pull	2	0.1 in	2.54 mm	18	Solder	Surface Mount	Gold
Mill-Max Manufacturing Corp. 429-10-270-00-560000	2.54 mm	0.1 in	Unshrouded	Header	Gold	All	10 çin	0.25 çm	7 mm	0.276 in	Brass Alloy	Thermoplastic	Black	Male Pin	0.121 in	3.07 mm	10 çin	0.25 çm	Circular	Push-Pull	2	0.1 in	2.54 mm	70	Solder	Surface Mount	Gold
Mill-Max Manufacturing Corp. 429-10-216-00-560000	2.54 mm	0.1 in	Unshrouded	Header	Gold	All	10 çin	0.25 çm	7 mm	0.276 in	Brass Alloy	Thermoplastic	Black	Male Pin	0.121 in	3.07 mm	10 çin	0.25 çm	Circular	Push-Pull	2	0.1 in	2.54 mm		Solder	Surface Mount	Gold	16
Mill-Max Manufacturing Corp. 429-10-208-00-560000	2.54 mm	0.1 in	Unshrouded	Header	Gold	All	10 çin	0.25 çm	7 mm	0.276 in	Brass Alloy	Thermoplastic	Black	Male Pin	0.121 in	3.07 mm	10 çin	0.25 çm	Circular	Push-Pull	2	0.1 in	2.54 mm	8	Solder	Surface Mount	Gold
Mill-Max Manufacturing Corp. 429-10-250-00-560000	2.54 mm	0.1 in	Unshrouded	Header	Gold	All	10 çin	0.25 çm	7 mm	0.276 in	Brass Alloy	Thermoplastic	Black	Male Pin	0.121 in	3.07 mm	10 çin	0.25 çm	Circular	Push-Pull	2	0.1 in	2.54 mm	50	Solder	Surface Mount	Gold
Mill-Max Manufacturing Corp. 429-10-214-00-560000	2.54 mm	0.1 in	Unshrouded	Header	Gold	All	10 çin	0.25 çm	7 mm	0.276 in	Brass Alloy	Thermoplastic	Black	Male Pin	0.121 in	3.07 mm	10 çin	0.25 çm	Circular	Push-Pull	2	0.1 in	2.54 mm	14	Solder	Surface Mount	Gold
Mill-Max Manufacturing Corp. 429-10-234-00-560000	2.54 mm	0.1 in	Unshrouded	Header	Gold	All	10 çin	0.25 çm	7 mm	0.276 in	Brass Alloy	Thermoplastic	Black	Male Pin	0.121 in	3.07 mm	10 çin	0.25 çm	Circular	Push-Pull	2	0.1 in	2.54 mm	34	Solder	Surface Mount	Gold
Mill-Max Manufacturing Corp. 429-10-266-00-560000	2.54 mm	0.1 in	Unshrouded	Header	Gold	All	10 çin	0.25 çm	7 mm	0.276 in	Brass Alloy	Thermoplastic	Black	Male Pin	0.121 in	3.07 mm	10 çin	0.25 çm	Circular	Push-Pull	2	0.1 in	2.54 mm	66	Solder	Surface Mount	Gold
Mill-Max Manufacturing Corp. 429-10-246-00-560000	2.54 mm	0.1 in	Unshrouded	Header	Gold	All	10 çin	0.25 çm	7 mm	0.276 in	Brass Alloy	Thermoplastic	Black	Male Pin	0.121 in	3.07 mm	10 çin	0.25 çm	Circular	Push-Pull	2	0.1 in	2.54 mm	46	Solder	Surface Mount	Gold
Mill-Max Manufacturing Corp. 429-10-248-00-560000	2.54 mm	0.1 in	Unshrouded	Header	Gold	All	10 çin	0.25 çm	7 mm	0.276 in	Brass Alloy	Thermoplastic	Black	Male Pin	0.121 in	3.07 mm	10 çin	0.25 çm	Circular	Push-Pull	2	0.1 in	2.54 mm	48	Solder	Surface Mount	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 26.41
		16	$ 23.13
		104	$ 20.70
		504	$ 18.99

Description

General part information

429-10 Series

Connector Header Surface Mount 50 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available
