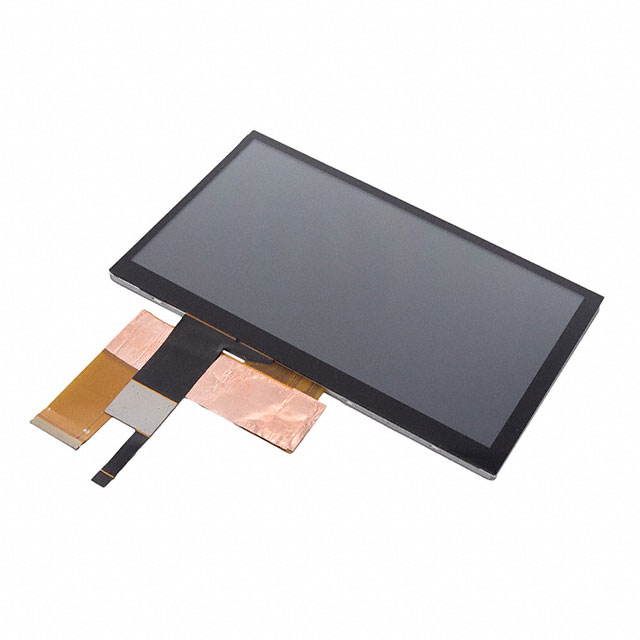

4DLCD-70800480-CTP

Active

4D LCD Pty Ltd

IPS LCD MODULE 7.0" 800X480 PXL

Deep-Dive with AI

Search across all available documentation for this part.

4DLCD-70800480-CTP

Active

4D LCD Pty Ltd

IPS LCD MODULE 7.0" 800X480 PXL

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	4DLCD-70800480-CTP	4DLCD Series

Backlight	LED	LED
Diagonal Screen Size	177.8 mm	71.12 - 228.6 mm
Diagonal Screen Size	7 in	2.8 - 9 in
Diagonal Screen Size	-	127 mm
Diagonal Screen Size	-	5 in
Display Mode	Transmissive	Transmissive
Display Type	TFT - Color	TFT - Color
Dot Pitch [x]	0.19 mm	0.09 - 0.2 mm
Dot Pitch [y]	0.19 mm	0.18 - 0.23 mm
Dot Pixels [x]	800	240 - 800
Dot Pixels [y]	480	272 - 480
Graphics Color	Green, Red, Blue	Green, Red, Blue
Interface	Parallel	Parallel, MCU, SPI
Interface	24 Bit	24 Bit
Touchscreen	Capacitive	Capacitive, Resistive, Non-Touch
Viewing Area	-	64.8 - 111.7 mm
Viewing Area	-	43.2 mm
Viewing Area	-	57.6 mm
Viewing Area [x]	153.84 mm	48.96 - 153.84 mm
Viewing Area [y]	85.63 mm	48.6 - 198 mm

4DLCD Series

IPS LCD MODULE 7.0" 800X480 PXL

Part	Dot Pitch [x]	Dot Pitch [y]	Display Type	Interface	Interface	Backlight	Touchscreen	Diagonal Screen Size	Diagonal Screen Size	Viewing Area [y]	Viewing Area [x]	Graphics Color	Dot Pixels [y]	Dot Pixels [x]	Display Mode	Viewing Area [z]	Viewing Area [custom]	Viewing Area [custom]
4D LCD Pty Ltd 4DLCD-70800480-CTP	0.19 mm	0.19 mm	TFT - Color	Parallel	24 Bit	LED	Capacitive	177.8 mm	7 in	85.63 mm	153.84 mm	Blue, Green, Red	480	800	Transmissive
4D LCD Pty Ltd 4DLCD-90800480-RTP	0.09 mm	0.23 mm	TFT - Color	Parallel	24 Bit	LED	Resistive	228.6 mm	9 in	198 mm		Blue, Green, Red	480	800	Transmissive	111.7 mm
4D LCD Pty Ltd 4DLCD-35480320-RTP	0.2 mm	0.2 mm	TFT - Color	MCU, SPI		LED	Resistive			73.44 mm	48.96 mm	Blue, Green, Red	480	320 pixels	Transmissive
4D LCD Pty Ltd 4DLCD-70800480	0.19 mm	0.19 mm	TFT - Color	Parallel	24 Bit	LED	Non-Touch	177.8 mm	7 in	85.63 mm	153.84 mm	Blue, Green, Red	480	800	Transmissive
4D LCD Pty Ltd 4DLCD-43480272	0.2 mm	0.2 mm	TFT - Color	Parallel	24 Bit	LED	Non-Touch	109.22 mm	4.3 in	53.86 mm	95.04 mm	Blue, Green, Red	272	480	Transmissive
4D LCD Pty Ltd 4DLCD-90800480-CTP	0.09 mm	0.23 mm	TFT - Color	Parallel	24 Bit	LED	Capacitive	228.6 mm	9 in	198 mm		Blue, Green, Red	480	800	Transmissive	111.7 mm
4D LCD Pty Ltd 4DLCD-35480320-CTP	0.2 mm	0.2 mm	TFT - Color	MCU, SPI		LED	Capacitive			73.44 mm	48.96 mm	Blue, Green, Red	480	320 pixels	Transmissive
4D LCD Pty Ltd 4DLCD-28320240-RTP	0.18 mm	0.18 mm	TFT - Color	MCU, SPI		LED	Resistive	71.12 mm	2.8 in			Blue, Green, Red	320	240 pixels	Transmissive		43.2 mm	57.6 mm
4D LCD Pty Ltd 4DLCD-32320240-CTP	0.18 mm	0.18 mm	TFT - Color	MCU, SPI		LED	Capacitive	81.28 mm	3.2 in	48.6 mm		Blue, Green, Red	320	240 pixels	Transmissive	64.8 mm
4D LCD Pty Ltd 4DLCD-35480320-CTP-CLB	0.2 mm	0.2 mm	TFT - Color	MCU, SPI		LED	Capacitive			73.44 mm	48.96 mm	Blue, Green, Red	480	320 pixels	Transmissive

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 62.52

Description

General part information

4DLCD Series

Capacitive Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color Parallel, 24-Bit (RGB) 7" (177.80mm) 800 x 480

Documents

Technical documentation and resources

No documents available
