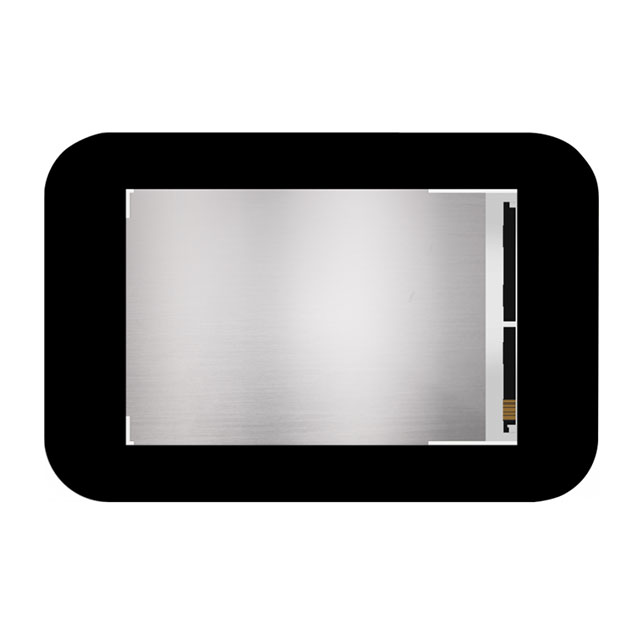

4DLCD-43480272

Active

4D LCD Pty Ltd

GRAPHIC DISPLAY TFT RGB 4.3"

Deep-Dive with AI

Search across all available documentation for this part.

4DLCD-43480272

Active

4D LCD Pty Ltd

GRAPHIC DISPLAY TFT RGB 4.3"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

4DLCD Series

Non-Touch Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color Parallel, 24-Bit (RGB) 4.3" (109.22mm) 480 x 272

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	4DLCD-43480272	4DLCD Series

Backlight	LED	LED
Diagonal Screen Size	109.22 mm	71.12 - 228.6 mm
Diagonal Screen Size	4.3 in	2.8 - 9 in
Diagonal Screen Size	-	127 mm
Diagonal Screen Size	-	5 in
Display Mode	Transmissive	Transmissive
Display Type	TFT - Color	TFT - Color
Dot Pitch [x]	0.2 mm	0.09 - 0.2 mm
Dot Pitch [y]	0.2 mm	0.18 - 0.23 mm
Dot Pixels [x]	480	240 - 800
Dot Pixels [y]	272	272 - 480
Graphics Color	Green, Red, Blue	Green, Red, Blue
Interface	Parallel	Parallel, MCU, SPI
Interface	24 Bit	24 Bit
Touchscreen	Non-Touch	Capacitive, Resistive, Non-Touch
Viewing Area	-	64.8 - 111.7 mm
Viewing Area	-	43.2 mm
Viewing Area	-	57.6 mm
Viewing Area [x]	95.04 mm	48.96 - 153.84 mm
Viewing Area [y]	53.86 mm	48.6 - 198 mm

4DLCD Series

IPS LCD MODULE 7.0" 800X480 PXL

Part	Dot Pitch [x]	Dot Pitch [y]	Display Type	Interface	Interface	Backlight	Touchscreen	Diagonal Screen Size	Diagonal Screen Size	Viewing Area [y]	Viewing Area [x]	Graphics Color	Dot Pixels [y]	Dot Pixels [x]	Display Mode	Viewing Area [z]	Viewing Area [custom]	Viewing Area [custom]
4D LCD Pty Ltd 4DLCD-70800480-CTP	0.19 mm	0.19 mm	TFT - Color	Parallel	24 Bit	LED	Capacitive	177.8 mm	7 in	85.63 mm	153.84 mm	Blue, Green, Red	480	800	Transmissive
4D LCD Pty Ltd 4DLCD-90800480-RTP	0.09 mm	0.23 mm	TFT - Color	Parallel	24 Bit	LED	Resistive	228.6 mm	9 in	198 mm		Blue, Green, Red	480	800	Transmissive	111.7 mm
4D LCD Pty Ltd 4DLCD-35480320-RTP	0.2 mm	0.2 mm	TFT - Color	MCU, SPI		LED	Resistive			73.44 mm	48.96 mm	Blue, Green, Red	480	320 pixels	Transmissive
4D LCD Pty Ltd 4DLCD-70800480	0.19 mm	0.19 mm	TFT - Color	Parallel	24 Bit	LED	Non-Touch	177.8 mm	7 in	85.63 mm	153.84 mm	Blue, Green, Red	480	800	Transmissive
4D LCD Pty Ltd 4DLCD-43480272	0.2 mm	0.2 mm	TFT - Color	Parallel	24 Bit	LED	Non-Touch	109.22 mm	4.3 in	53.86 mm	95.04 mm	Blue, Green, Red	272	480	Transmissive
4D LCD Pty Ltd 4DLCD-90800480-CTP	0.09 mm	0.23 mm	TFT - Color	Parallel	24 Bit	LED	Capacitive	228.6 mm	9 in	198 mm		Blue, Green, Red	480	800	Transmissive	111.7 mm
4D LCD Pty Ltd 4DLCD-35480320-CTP	0.2 mm	0.2 mm	TFT - Color	MCU, SPI		LED	Capacitive			73.44 mm	48.96 mm	Blue, Green, Red	480	320 pixels	Transmissive
4D LCD Pty Ltd 4DLCD-28320240-RTP	0.18 mm	0.18 mm	TFT - Color	MCU, SPI		LED	Resistive	71.12 mm	2.8 in			Blue, Green, Red	320	240 pixels	Transmissive		43.2 mm	57.6 mm
4D LCD Pty Ltd 4DLCD-32320240-CTP	0.18 mm	0.18 mm	TFT - Color	MCU, SPI		LED	Capacitive	81.28 mm	3.2 in	48.6 mm		Blue, Green, Red	320	240 pixels	Transmissive	64.8 mm
4D LCD Pty Ltd 4DLCD-35480320-CTP-CLB	0.2 mm	0.2 mm	TFT - Color	MCU, SPI		LED	Capacitive			73.44 mm	48.96 mm	Blue, Green, Red	480	320 pixels	Transmissive
