1219/40C SL005

Active

ALPHA WIRE

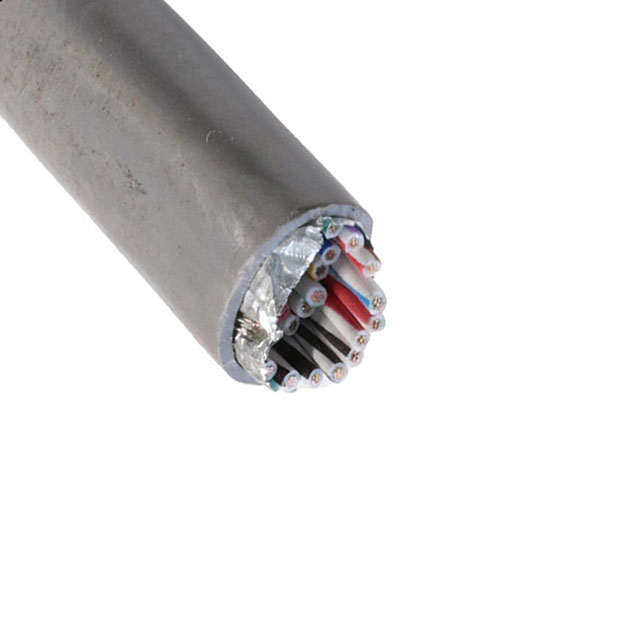

MULTICONDUCTOR CABLE, SHIELDED, 40 CONDUCTOR, 24 AWG, 0.23 MM², 100 FT, 30.48 M

Search across all available documentation for this part.

Active

ALPHA WIRE

MULTICONDUCTOR CABLE, SHIELDED, 40 CONDUCTOR, 24 AWG, 0.23 MM², 100 FT, 30.48 M

Technical Specifications

Parameters and characteristics for this part

Specification	1219/40C SL005

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	9.91 mm
Jacket (Insulation) Diameter [diameter]	0.39 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Slate
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	40
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Control, Communication
Voltage	300 V
Wire Gauge	24 AWG

MULTICONDUCTOR CABLE, SHIELDED, 40 CONDUCTOR, 24 AWG, 0.23 MM², 100 FT, 30.48 M

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length [x]	Length [x]	Conductor Insulation	Shield Material	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material	Shield Coverage	Shield Type	Cable Type	Features	Voltage	Usage	Jacket Color	Number of Conductors	Conductor Material	Wire Gauge	Operating Temperature [Min]	Operating Temperature [Max]
ALPHA WIRE 1219/40C SL005	9.91 mm	0.39 in	30.5 m	100 ft	Poly-Vinyl Chloride (PVC)	Aluminum	32 AWG	7	Poly-Vinyl Chloride (PVC)	100 %	Foil	Multi-Conductor	Drain Wire	300 V	Communication, Control	Slate	40	Copper, Tinned	24 AWG	-20 C	80 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 1642.09
Newark	Spool of 100	1	$ 1875.97

General part information

40 Conductor Multi-Conductor Cable Slate 24 AWG Foil 100.0' (30.5m)
