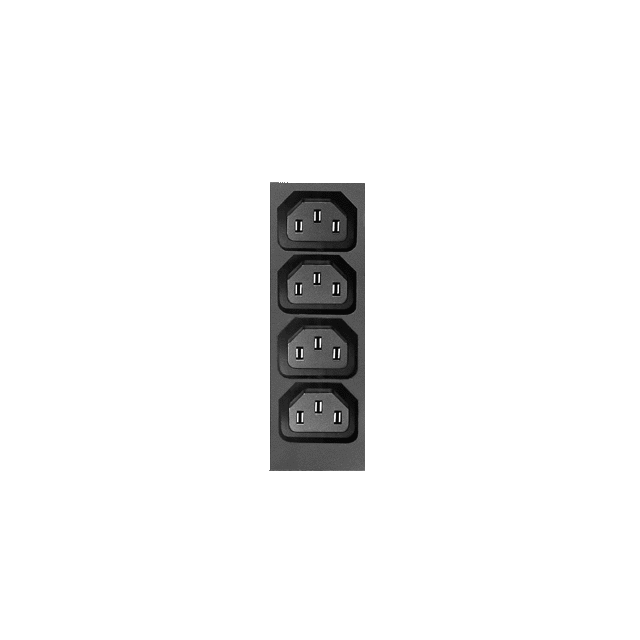

44R02-4121-150

Active

Power Dynamics, Inc.

PWR ENT MOD RCPT IEC320-C13 PNL

Search across all available documentation for this part.

Active

Power Dynamics, Inc.

PWR ENT MOD RCPT IEC320-C13 PNL

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C13 Panel Mount, Snap-In

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	44R02-4121-150	44R02 Series

Accomodates a Fuse	-	False
Approval Agency	VDE, UL, cUL	cULus, VDE, VDE, UL, cUL
Connector Style	IEC 320-C13	IEC 320-C13
Connector Type	Receptacle, Male Blades - Module	Receptacle, Female Sockets, Receptacle, Male Blades - Module
Filter Type	-	Unfiltered - Commercial
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Number of Positions	3 per connection (4)	3 per connection (3), 3 per connection, 3 per connection (4)
Number of Positions	-	5
Panel Cutout Dimensions [x]	99.6 mm	72.2 - 123.2 mm
Panel Cutout Dimensions [y]	35 mm	32.5 - 35 mm
Panel Thickness	-	0.059 in
Panel Thickness	-	1.5 mm
Termination	Solder	Solder Eyelet, Solder

PWR ENT RCPT IEC320-C13 PNL SLDR

Part	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Number of Positions	Connector Style	Mounting Type	Filter Type	Panel Thickness [custom]	Panel Thickness [custom]	Termination	Material Flammability Rating	Approval Agency	Connector Type	Number of Positions
Power Dynamics, Inc. 44R02-3121-150	72.2 mm	32.5 mm	3 per connection (3)	IEC 320-C13	Panel Mount, Snap-In	Unfiltered - Commercial	0.059 in	1.5 mm	Solder Eyelet	UL94 V-0	cULus, VDE	Receptacle, Female Sockets
Power Dynamics, Inc. 44R02-5121-250	123.2 mm	35 mm	3 per connection	IEC 320-C13	Panel Mount, Snap-In				Solder	UL94 V-0	cUL, UL, VDE	Receptacle, Male Blades - Module	5
Power Dynamics, Inc. 44R02-4121-150	99.6 mm	35 mm	3 per connection (4)	IEC 320-C13	Panel Mount, Snap-In				Solder	UL94 V-0	cUL, UL, VDE	Receptacle, Male Blades - Module
