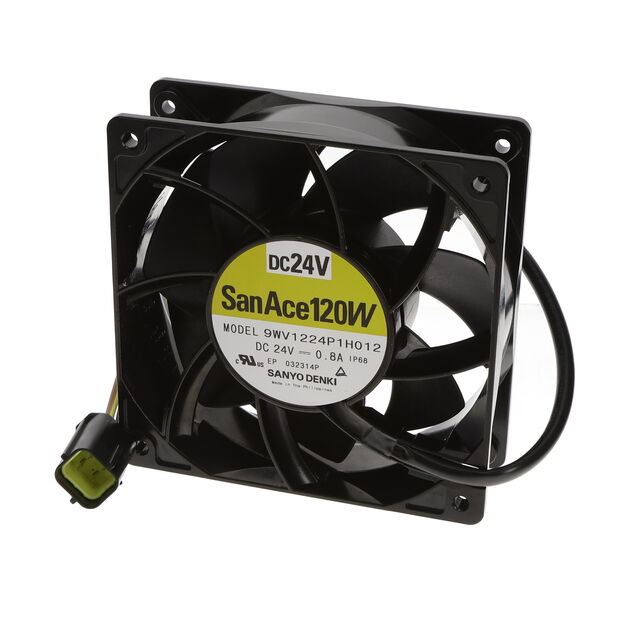

9WV1224P1H012

Active

Sanyo Denki America Inc.

120X38MM, DC, 24V,SPLASH PROOF,R

Deep-Dive with AI

Search across all available documentation for this part.

9WV1224P1H012

Active

Sanyo Denki America Inc.

120X38MM, DC, 24V,SPLASH PROOF,R

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 73.21
		21	$ 66.24
		42	$ 61.88
		63	$ 61.01
		105	$ 56.21

Description

General part information

9WV1224 Series

Fan Tubeaxial 24VDC Square - 120.1mm L x 120.1mm H Ball 4 Position Rectangular Connector

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	9WV1224P1H012	9WV1224 Series

Air Flow	-	5.1 - 6.27 m³/min
Air Flow	-	182.3 - 224 CFM
Approval Agency	-	CSA, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	800 mA	1.5 - 800 mA
Fan Type	Tubeaxial	Tubeaxial
Features	-	Speed Sensor (Tach), PWM Control, Locked Rotor Protection, Locked Rotor Sensor
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Material - Blade	Plastic	Plastic
Material - Frame	Aluminum	Aluminum
Noise	58.5 dB	58 - 64 dB(A)
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 °C	-20 °C
Operating Temperature [Min]	-20 C	-20 C
Power (Watts)	-	19.2 - 36 W
RPM	5200 RPM	5200 - 6400 RPM
Size / Dimension	Square	Square
Size / Dimension	-	120 mm
Size / Dimension [x]	120.1 mm	120 - 120.1 mm
Size / Dimension [z]	120.1 mm	120.1 mm
Static Pressure	-	237 - 361.2 Pa
Static Pressure	-	0.95 - 1.45 in H2O
Termination	4 Position Rectangular Connector	4 Wire Leads, 4 Position Rectangular Connector, 3 Wire Leads
Voltage - Rated	24 VDC	24 VDC
Weight	-	0.97 lb
Weight	-	439.98 - 440 g
Width [y]	38 mm	38 mm

9WV1224 Series

FAN AXIAL 120X38MM 24VDC WIRE

Part	Size / Dimension [y]	Size / Dimension [x]	Air Flow	Air Flow	Noise	Weight	Weight	Width [y]	Fan Type	Ingress Protection	Static Pressure	Static Pressure	Material - Frame	Features	Current Rating (Amps)	Approval Agency	Bearing Type	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Voltage - Rated	Termination	RPM	Material - Blade	Size / Dimension [z]	Size / Dimension
Sanyo Denki America Inc. 9WV1224P1H001	120 mm	120 mm	5.11 m³/min	182.4 CFM	58 dB(A)	0.97 lb	439.98 g	38 mm	Tubeaxial	IP68 - Dust Tight, Waterproof	237 Pa	0.95 in H2O	Aluminum	PWM Control, Speed Sensor (Tach)	800 mA	CSA, TUV, UL	Ball	-20 °C	70 °C	-20 C	70 °C	19.2 W	24 VDC	4 Wire Leads	5200 RPM	Plastic
Sanyo Denki America Inc. 9WV1224P1H012		120.1 mm			58.5 dB			38 mm	Tubeaxial	IP68 - Dust Tight, Waterproof			Aluminum		800 mA		Ball	-20 °C	70 °C	-20 C	70 °C		24 VDC	4 Position Rectangular Connector	5200 RPM	Plastic	120.1 mm	Square
Sanyo Denki America Inc. 9WV1224J1001	120 mm	120 mm	6.27 mł/min	224 CFM	64 dB(A)	0.97 lb	440 g	38 mm	Tubeaxial	IP68 - Dust Tight, Waterproof	361.2 Pa	1.45 in H2O	Aluminum	Locked Rotor Protection, Speed Sensor (Tach)	1.5 A	CSA, TUV, UL	Ball	-20 °C	70 °C	-20 C	70 °C	36 W	24 VDC	3 Wire Leads	6400 RPM	Plastic
Sanyo Denki America Inc. 9WV1224H101	120 mm	120 mm	5.1 m³/min	182.3 CFM	58 dB(A)	0.97 lb	440 g	38 mm	Tubeaxial	IP68 - Dust Tight, Waterproof	237 Pa	0.95 in H2O	Aluminum	Locked Rotor Protection, Speed Sensor (Tach)	800 mA	CSA, TUV, UL	Ball	-20 °C	70 °C	-20 C	70 °C	19.2 W	24 VDC	3 Wire Leads	5200 RPM	Plastic
Sanyo Denki America Inc. 9WV1224H1D001	120 mm	120 mm	5.1 m³/min	182.3 CFM	58 dB(A)	0.97 lb	440 g	38 mm	Tubeaxial	IP68 - Dust Tight, Waterproof	237 Pa	0.95 in H2O	Aluminum	Locked Rotor Sensor	800 mA	CSA, TUV, UL	Ball	-20 °C	70 °C	-20 C	70 °C	19.2 W	24 VDC	3 Wire Leads	5200 RPM	Plastic
