FTS-102-03-F-DV-TR

Active

Samtec Inc.

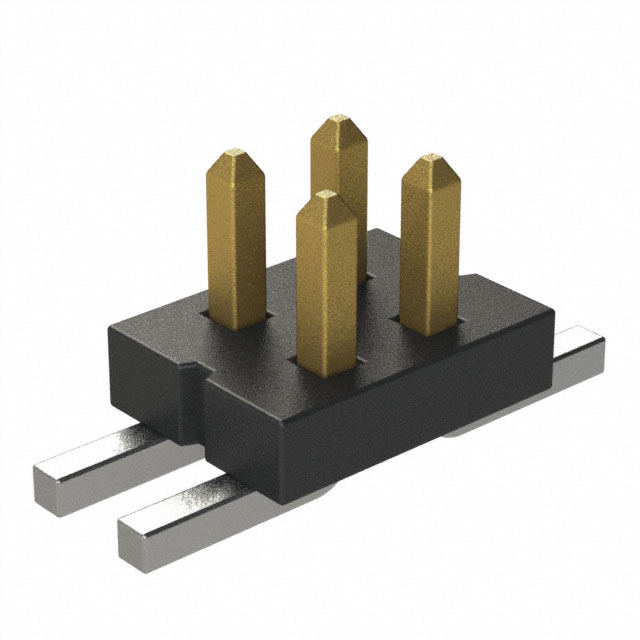

CONN HEADER SMD 4POS 1.27MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Micro Low Profile Header Strips +2

FTS-102-03-F-DV-TR

Active

Samtec Inc.

CONN HEADER SMD 4POS 1.27MM

Deep-Dive with AI

DocumentsDatasheet Micro Low Profile Header Strips +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FTS-102-03-F-DV-TR

Connector Type	Cuttable, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Length - Mating	0.065 in
Contact Length - Mating	1.65 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.034 in
Insulation Height	0.86 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

FTS-102 Series

Part	Shrouding	Insulation Color	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Contact Finish - Post	Connector Type	Row Spacing - Mating	Row Spacing - Mating	Contact Length - Mating	Contact Length - Mating	Contact Type	Insulation Height	Insulation Height	Fastening Type	Material Flammability Rating	Termination	Number of Positions	Insulation Material	Pitch - Mating	Pitch - Mating	Style	Contact Material	Mounting Type	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Length - Post	Contact Length - Post	Overall Contact Length	Overall Contact Length
Samtec Inc. FTS-102-03-F-DV-TR	Unshrouded	Black	Square	-55 °C	125 °C	Gold	Tin	Cuttable Header	0.05 in	1.27 mm	0.065 in	1.65 mm	Male Pin	0.034 in	0.86 mm	Push-Pull	UL94 V-0	Solder	4	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	Board to Board Cable	Phosphor Bronze	Surface Mount	2	3 µin	0.076 µm	All
Samtec Inc. FTS-102-02-F-SV	Unshrouded	Black	Square	-55 °C	125 °C	Gold	Tin	Cuttable Header					Male Pin	0.034 in	0.86 mm	Push-Pull	UL94 V-0	Solder	2	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	Board to Board Cable	Phosphor Bronze	Surface Mount	1	3 µin	0.076 µm	All	1.9 mm	0.075 in
Samtec Inc. FTS-102-02-L-SV	Unshrouded	Black	Square	-55 °C	125 °C	Gold	Tin	Cuttable Header					Male Pin	0.034 in	0.86 mm	Push-Pull	UL94 V-0	Solder	2	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	Board to Board Cable	Phosphor Bronze	Surface Mount	1	10 çin	0.25 çm	All	1.9 mm	0.075 in
Samtec Inc. FTS-102-01-SM-D	Unshrouded	Black	Square	-55 °C	125 °C	Gold	Tin	Cuttable Header	0.05 in	1.27 mm	0.12 in	3.05 mm	Male Pin	0.034 in	0.86 mm	Push-Pull	UL94 V-0	Solder	4	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	Board to Board Cable	Phosphor Bronze	Through Hole	2	30 Áin	0.76 Ám	All			0.09 "	2.29 mm	0.244 in	6.2 mm
Samtec Inc. FTS-102-01-S-S	Unshrouded	Black	Square	-55 °C	125 °C	Gold	Tin	Cuttable Header			0.12 in	3.05 mm	Male Pin	0.034 in	0.86 mm	Push-Pull	UL94 V-0	Solder	2	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	Board to Board Cable	Phosphor Bronze	Through Hole	1	30 Áin	0.76 Ám	All			0.09 "	2.29 mm	0.244 in	6.2 mm
Samtec Inc. FTS-102-01-F-S	Unshrouded	Black	Square	-55 °C	125 °C	Gold	Tin	Cuttable Header			0.12 in	3.05 mm	Male Pin	0.034 in	0.86 mm	Push-Pull	UL94 V-0	Solder	2	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	Board to Board Cable	Phosphor Bronze	Through Hole	1	3 µin	0.076 µm	All			0.09 "	2.29 mm	0.244 in	6.2 mm
Samtec Inc. FTS-102-03-L-DV-TR	Unshrouded	Black	Square	-55 °C	125 °C	Gold	Tin	Cuttable Header	0.05 in	1.27 mm	0.065 in	1.65 mm	Male Pin	0.034 in	0.86 mm	Push-Pull	UL94 V-0	Solder	4	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	Board to Board Cable	Phosphor Bronze	Surface Mount	2	10 çin	0.25 çm	All
Samtec Inc. FTS-102-01-LM-D	Unshrouded	Black	Square	-55 °C	125 °C	Gold	Tin	Cuttable Header	0.05 in	1.27 mm	0.12 in	3.05 mm	Male Pin	0.034 in	0.86 mm	Push-Pull	UL94 V-0	Solder	4	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	Board to Board Cable	Phosphor Bronze	Through Hole	2	10 çin	0.25 çm	All			0.09 "	2.29 mm	0.244 in	6.2 mm
Samtec Inc. FTS-102-01-L-S	Unshrouded	Black	Square	-55 °C	125 °C	Gold	Tin	Cuttable Header			0.12 in	3.05 mm	Male Pin	0.034 in	0.86 mm	Push-Pull	UL94 V-0	Solder	2	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	Board to Board Cable	Phosphor Bronze	Through Hole	1	10 çin	0.25 çm	All			0.09 "	2.29 mm	0.244 in	6.2 mm
Samtec Inc. FTS-102-04-F-DV-TR	Unshrouded	Black	Square	-55 °C	125 °C	Gold	Tin	Cuttable Header	0.05 in	1.27 mm	0.15 in	3.81 mm	Male Pin	0.034 in	0.86 mm	Push-Pull	UL94 V-0	Solder	4	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	Board to Board Cable	Phosphor Bronze	Surface Mount	2	3 µin	0.076 µm	All
