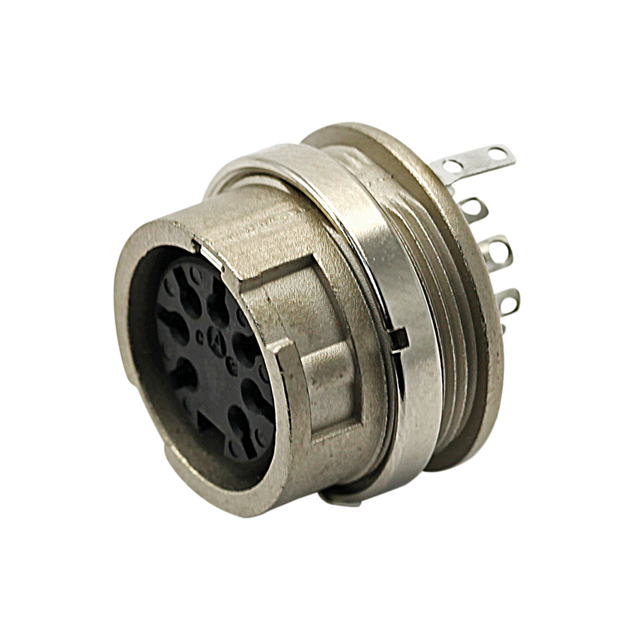

T 3437 150

Active

Amphenol Sine Systems Corp

REAR MOUNTING FEMALE METAL RECEP

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

REAR MOUNTING FEMALE METAL RECEP

Technical Specifications

Parameters and characteristics for this part

Specification	T 3437 150

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	1.5 mm
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Silver
Includes	1 Nut, 1 Connector
Ingress Protection	IP40
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Note	Contacts Not Included
Number of Positions	7
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Die Cast
Shell Size - Insert	M16-7
Shielding	Shielded
Type	For Female Sockets

Part	Connector Type	Includes	Insert Material	Contact Type	Shell Material	Fastening Type	Contact Size	Mounting Feature	Shielding	Orientation	Shell Finish	Contact Shape	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Number of Positions	Material Flammability Rating	Type	Housing Color	Shell Size - Insert	Note
Amphenol Sine Systems Corp T 3437 150	Receptacle Housing	1 Connector 1 Nut	Thermoplastic	Crimp	Die Cast	Bayonet Lock	1.5 mm	Bulkhead - Front Side Nut	Shielded	Keyed	Nickel	Circular	100 °C	-40 °C	IP40	7	UL94 V-0	For Female Sockets	Silver	M16-7	Contacts Not Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	105	$ 8.95

General part information

7 Position Circular Connector Receptacle Housing Panel Mount
