General part information

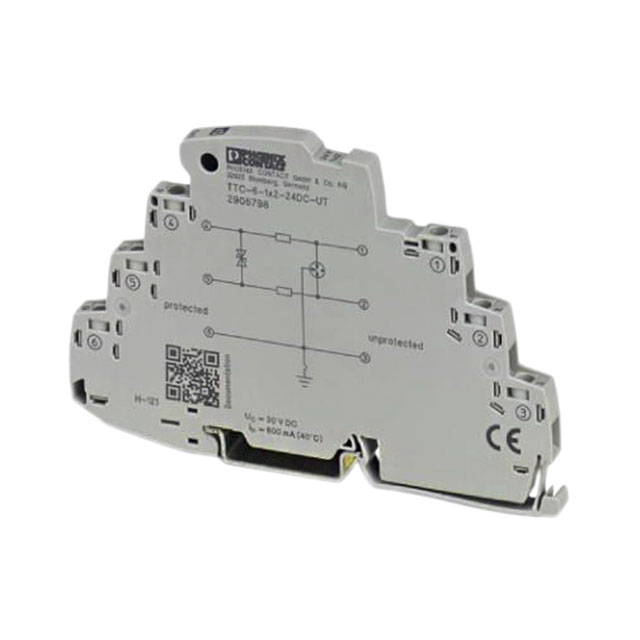

Surge Suppressors TTC-6-1X2-24DC-UT
Technical documentation and resources
Parameters and characteristics for this part
| Specification | 2906798 |
|---|---|
| Approval Agency | CSAus, cULus, UL, CSA, cCSAus, cUL |
| Current - Discharge (Max) (8/20µS) [Max] | 20 kA |
| Current - Discharge (Nom) (8/20µS) | 5 kA |
| Form | Module Only |
| Mounting Type | DIN Rail |
| Number of Poles | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Voltage - Continuous Operating (Max) (MCOV) | 21 VAC, 30 VDC |
| Voltage - Protection Level (VP) (2416) | 750 V |
Surge Suppressors TTC-6-1X2-24DC-UT
| Part | Voltage - Protection Level (VP) (2416) | Number of Poles | Mounting Type | Current - Discharge (Max) (8/20µS) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Continuous Operating (Max) (MCOV) | Form | Current - Discharge (Nom) (8/20µS) | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2906798 | 750 V | 1 | DIN Rail | 20 kA | -40 °C | 70 °C | 21 VAC, 30 VDC | Module Only | 5 kA | cCSAus, CSA, CSAus, cUL, cULus, UL |
