936209-1

Active

TE Connectivity AMP Connectors

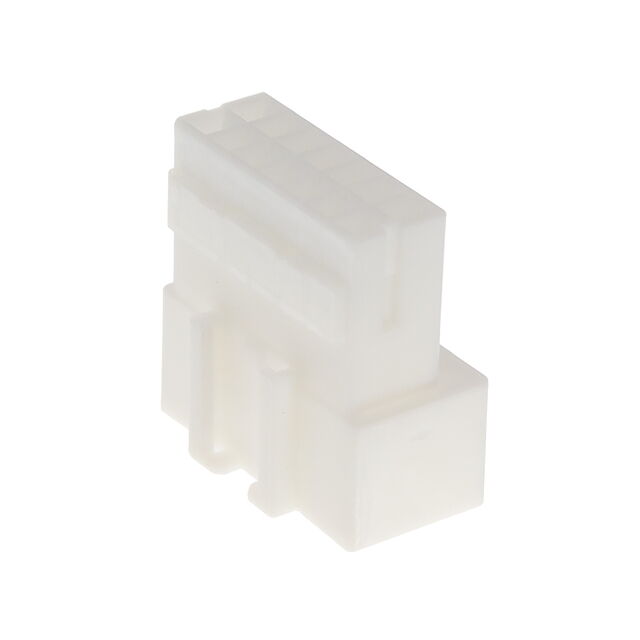

CONN RCPT HSG 14POS

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 14POS

Technical Specifications

Parameters and characteristics for this part

Specification	936209-1

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Tab
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	14
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C

CONN RCPT HSG 14POS

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Note	Color	Contact Type	Connector Type	Insulation Material	Number of Positions	Number of Rows	Contact Termination
TE Connectivity AMP Connectors 936209-1	-30 ░C	105 ░C	Free Hanging (In-Line)	Contacts Not Included	Natural	Tab	Receptacle	Polybutylene Terephthalate (PBT)	14	2	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

14 Rectangular Connectors - Housings Receptacle Natural
