DW-01-07-F-S-200

Active

Samtec Inc.

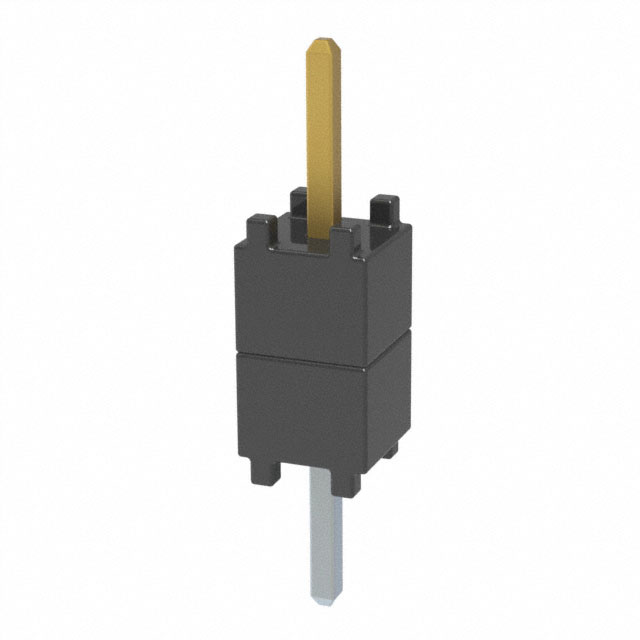

CONN HDR 1POS STACK T/H GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFlexible Board Stacking Header with Fixed Tail Length, 0.100" Pitch DW Datasheet +1

DW-01-07-F-S-200

Active

Samtec Inc.

CONN HDR 1POS STACK T/H GOLD

Deep-Dive with AI

DocumentsFlexible Board Stacking Header with Fixed Tail Length, 0.100" Pitch DW Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DW-01-07-F-S-200

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	3 Áin
Contact Finish Thickness - Post (Mating)	0.076 Ám
Length - Overall Pin [x]	10.922 mm
Length - Overall Pin [x]	0.43 in
Length - Post (Mating) [x]	3.048 mm
Length - Post (Mating) [x]	0.12 in
Length - Tail [x]	0.11 in
Length - Tail [x]	2.794 mm
Mounting Type	Through Hole
Number of Positions	1
Number of Rows	1
Termination	Solder

DW-01-07 Series

Part	Color	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Contact Finish - Post (Mating)	Number of Rows	Termination	Number of Positions	Length - Overall Pin [x]	Length - Overall Pin [x]	Length - Stack Height [x]	Length - Stack Height [x]	Length - Tail [x]	Length - Tail [x]	Mounting Type	Row Spacing [x]	Row Spacing	Length - Post (Mating) [x]	Length - Post (Mating) [x]
Samtec Inc. DW-01-07-G-D-314	Black	0.25 Ám	10 Áin	Gold	2	Solder	2	10.922 mm	0.43 in	0.314 in	7.976 mm	0.11 in	2.794 mm	Through Hole	0.1 in	2.54 mm
Samtec Inc. DW-01-07-T-Q-200	Black			Tin	3	Solder	2	10.922 mm	0.43 in			0.11 in	2.794 mm	Through Hole	0.1 in	2.54 mm	3.048 mm	0.12 in
Samtec Inc. DW-01-07-T-S-251	Black			Tin	1	Solder	1	10.922 mm	0.43 in	0.251 in	6.375 mm	0.11 in	2.794 mm	Through Hole			1.753 mm	0.069 in
Samtec Inc. DW-01-07-T-S-268	Black			Tin	1	Solder	1	10.922 mm	0.43 in	0.268 in	6.807 mm	0.11 in	2.794 mm	Through Hole			1.321 mm	0.052 in
Samtec Inc. DW-01-07-F-S-220	Black	0.076 Ám	3 Áin	Gold	1	Solder	1	10.922 mm	0.43 in			0.11 in	2.794 mm	Through Hole			2.54 mm	0.1 in
Samtec Inc. DW-01-07-L-S-250	Black	0.25 Ám	10 Áin	Gold	1	Solder	1	10.922 mm	0.43 in	0.25 in	6.35 mm	0.11 in	2.794 mm	Through Hole			1.778 mm	0.07 in
Samtec Inc. DW-01-07-T-D-200	Black			Tin	2	Solder	2	10.922 mm	0.43 in			0.11 in	2.794 mm	Through Hole	0.1 in	2.54 mm	3.048 mm	0.12 in
Samtec Inc. DW-01-07-F-S-200	Black	0.076 Ám	3 Áin	Gold	1	Solder	1	10.922 mm	0.43 in			0.11 in	2.794 mm	Through Hole			3.048 mm	0.12 in
Samtec Inc. DW-01-07-T-S-228	Black			Tin	1	Solder	1	10.922 mm	0.43 in	0.228 in	5.791 mm	0.11 in	2.794 mm	Through Hole			2.337 mm	0.092 in
Samtec Inc. DW-01-07-G-S-281	Black	0.25 Ám	10 Áin	Gold	1	Solder	1	10.922 mm	0.43 in	0.281 in	7.137 mm	0.11 in	2.794 mm	Through Hole			0.991 mm	0.039 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.22

Description

General part information

DW-01-07 Series

1 Position Header Spacer Connector Gold Through Hole

Documents

Technical documentation and resources

Flexible Board Stacking Header with Fixed Tail Length, 0.100" Pitch

DW Datasheet

Datasheet
