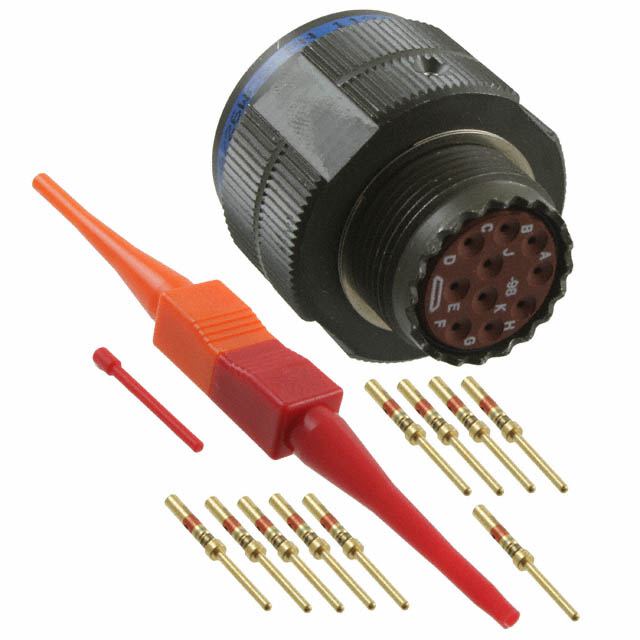

D38999/26WC98PN

Active

Amphenol Aerospace Operations

CONN PLUG MALE 10POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D38999/26WC98PN

Active

Amphenol Aerospace Operations

CONN PLUG MALE 10POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/26WC98PN

Applications	Aviation, Aerospace, Marine, Military
Color	Olive Drab
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Features	Coupling Nut, Self Locking
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Number of Positions	10
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Finish	Olive Drab Cadmium
Shell Material	Aluminum
Shell Size, MIL	C
Shielding	Shielded
Termination	Crimp

D38999/26WC Series

Part	Shell Size, MIL	Connector Type	Grade	Qualification	Insert Material	Mounting Type	Shell Material	Contact Type	Note	Shell Finish	Orientation	Contact Shape	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Size	Number of Positions	Housing Color	Ingress Protection	Features	Type	Shielding	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Contact Size	Shell Size - Insert	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Color	Termination	Applications	Contact Material	Contact Finish - Mating
Amphenol Aerospace Operations D38999/26WC35BC	C	Plug Housing	Military	MIL-DTL-38999 Series III	Thermoplastic	Free Hanging (In-Line)	Aluminum	Crimp	Contacts Not Included	Cadmium	C	Circular	Metal	-65 ░C	347 °F	22D	22 positions	Olive Drab	Environment Resistant	Coupling Nut Self Locking	For Female Sockets	Shielded	35	13
Amphenol Aerospace Operations D38999/26WC8SE-LC	C	Plug Housing	Military	MIL-DTL-38999 Series III		Free Hanging (In-Line)	Aluminum	Crimp	Contacts Not Included	Cadmium	E	Circular		-65 ░C	347 °F		8	Olive Drab	Environment Resistant	Coupling Nut Self Locking	For Female Sockets	Shielded			20	13-8
Amphenol Aerospace Operations D38999/26WC4PN	C	Male Pins Plug	Military	MIL-DTL-38999 Series III		Free Hanging (In-Line)	Aluminum			Olive Drab Cadmium	N		Metal	-65 ░C	347 °F		4		Environment Resistant	Coupling Nut		Shielded				13-4	1.27 µm	50 µin	Olive Drab	Crimp	Aerospace Aviation Marine Military	Copper Alloy	Gold
Amphenol Aerospace Operations D38999/26WC8SNLC	C	Plug Housing	Military	MIL-DTL-38999 Series III	Thermoplastic	Free Hanging (In-Line)	Aluminum	Crimp	Contacts Not Included	Cadmium	N	Circular	Metal	-65 ░C	347 °F		8	Olive Drab	Environment Resistant	Coupling Nut Self Locking	For Female Sockets	Shielded			20	13-8
Amphenol Aerospace Operations D38999/26WC8JN	C	Female Sockets Plug	Military	MIL-DTL-38999 Series III		Free Hanging (In-Line)	Aluminum			Olive Drab Cadmium	N		Metal	-65 ░C	347 °F		8		Environment Resistant	Coupling Nut Self Locking		Shielded				13-8	2.54 çm	100 çin	Olive Drab	Crimp	Aviation Marine Military	Copper Alloy	Gold
Amphenol Aerospace Operations D38999/26WC98HA	C	Male Pins Plug	Military	MIL-DTL-38999 Series III		Free Hanging (In-Line)	Aluminum			Olive Drab Cadmium	A		Metal	-65 ░C	347 °F		10		Environment Resistant	Coupling Nut Self Locking		Shielded					2.54 çm	100 çin	Olive Drab	Crimp	Aviation Marine Military	Copper Alloy	Gold
Amphenol Aerospace Operations D38999/26WC98HB-LC	C	Plug Housing	Military	MIL-DTL-38999 Series III		Free Hanging (In-Line)	Aluminum	Crimp	Contacts Not Included	Cadmium	B	Circular		-65 ░C	347 °F		10	Olive Drab	Environment Resistant	Coupling Nut Self Locking	For Male Pins	Shielded			20
Amphenol Aerospace Operations D38999/26WC4SN	C	Female Sockets Plug	Military	MIL-DTL-38999 Series III		Free Hanging (In-Line)	Aluminum			Olive Drab Cadmium	N		Metal	-65 ░C	347 °F		4		Environment Resistant	Coupling Nut		Shielded				13-4	1.27 µm	50 µin	Olive Drab	Crimp	Aerospace Aviation Marine Military	Copper Alloy	Gold
Amphenol Aerospace Operations D38999/26WC4PC-LC	C	Plug Housing	Military	MIL-DTL-38999 Series III		Free Hanging (In-Line)	Aluminum	Crimp	Contacts Not Included	Cadmium	C	Circular		-65 ░C	347 °F		4	Olive Drab	Environment Resistant	Coupling Nut Self Locking	For Male Pins	Shielded			16	13-4
Amphenol Aerospace Operations D38999/26WC98PN	C	Male Pins Plug	Military	MIL-DTL-38999 Series III	Thermoplastic	Free Hanging (In-Line)	Aluminum			Olive Drab Cadmium	N		Metal	-65 ░C	347 °F		10		Environment Resistant	Coupling Nut Self Locking		Shielded					1.27 µm	50 µin	Olive Drab	Crimp	Aerospace Aviation Marine Military	Copper Alloy	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 51.27
		10	$ 49.62
		25	$ 48.06
		50	$ 47.32
		100	$ 44.58
		250	$ 43.94
		500	$ 42.14
		1000	$ 41.02
	Bulk	1	$ 55.22
		10	$ 42.79
		25	$ 38.85
		50	$ 36.19
		100	$ 33.78
		250	$ 30.94

Description

General part information

D38999/26WC Series

10 Position Circular Connector Plug, Male Pins Crimp
