DMP2045UFY4-7
ActiveDiodes Inc

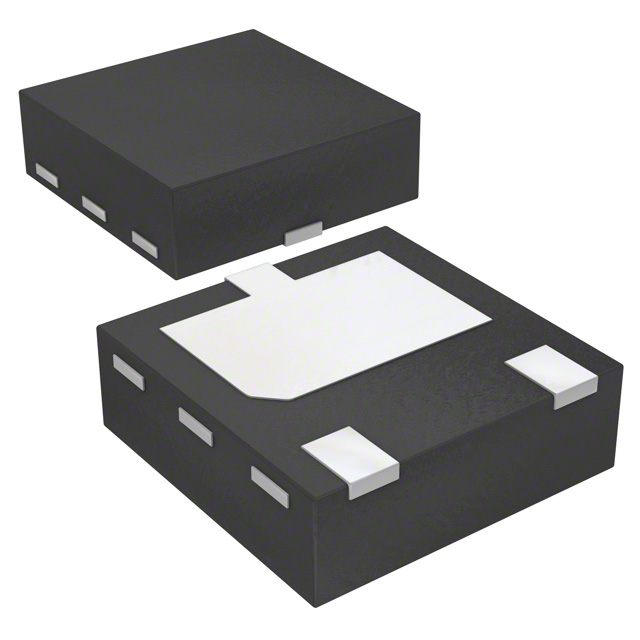

TRANS MOSFET P-CH -20V -4.7A 3-PIN DFN SMD T/R
Deep-Dive with AI
Search across all available documentation for this part.
DMP2045UFY4-7
ActiveDiodes Inc
TRANS MOSFET P-CH -20V -4.7A 3-PIN DFN SMD T/R
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DMP2045UFY4-7 |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 4.7 A |
| Drain to Source Voltage (Vdss) | 20 V |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5 V, 1.5 V |
| FET Type | P-Channel |
| Gate Charge (Qg) (Max) @ Vgs [Max] | 6.8 nC |
| Input Capacitance (Ciss) (Max) @ Vds | 634 pF |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 3-XDFN |
| Power Dissipation (Max) [Max] | 670 mW |
| Supplier Device Package | X2-DFN2015-3 |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | 8 V |
| Vgs(th) (Max) @ Id | 1 V |
DMP2045UFY4 Series
20V P-Channel Enhancement Mode MOSFET
| Part | Input Capacitance (Ciss) (Max) @ Vds | Supplier Device Package | Mounting Type | Drain to Source Voltage (Vdss) | FET Type | Operating Temperature [Min] | Operating Temperature [Max] | Drive Voltage (Max Rds On, Min Rds On) | Technology | Gate Charge (Qg) (Max) @ Vgs [Max] | Current - Continuous Drain (Id) @ 25°C | Package / Case | Vgs (Max) | Vgs(th) (Max) @ Id | Power Dissipation (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Diodes Inc | 634 pF | SOT-23-3 | Surface Mount | 20 V | P-Channel | -55 °C | 150 °C | 1.8 V 4.5 V | MOSFET (Metal Oxide) | 6.8 nC | 4.3 A | SC-59 SOT-23-3 TO-236-3 | 8 V | 1 V | |
Diodes Inc | 634 pF | SOT-23-3 | Surface Mount | 20 V | P-Channel | -55 °C | 150 °C | 1.8 V 4.5 V | MOSFET (Metal Oxide) | 6.8 nC | 4.3 A | SC-59 SOT-23-3 TO-236-3 | 8 V | 1 V | |
Diodes Inc | 634 pF | X2-DFN2015-3 | Surface Mount | 20 V | P-Channel | -55 °C | 150 °C | 1.5 V 4.5 V | MOSFET (Metal Oxide) | 6.8 nC | 4.7 A | 3-XDFN | 8 V | 1 V | 670 mW |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.35 | |
| 10 | $ 0.27 | |||
| 100 | $ 0.16 | |||
| 500 | $ 0.15 | |||
| 1000 | $ 0.10 | |||
| Digi-Reel® | 1 | $ 0.35 | ||
| 10 | $ 0.27 | |||
| 100 | $ 0.16 | |||
| 500 | $ 0.15 | |||
| 1000 | $ 0.10 | |||
| Tape & Reel (TR) | 3000 | $ 0.08 | ||
| 6000 | $ 0.08 | |||
Description
General part information
DMP2045UFY4 Series
This MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high-efficiency power management applications.
