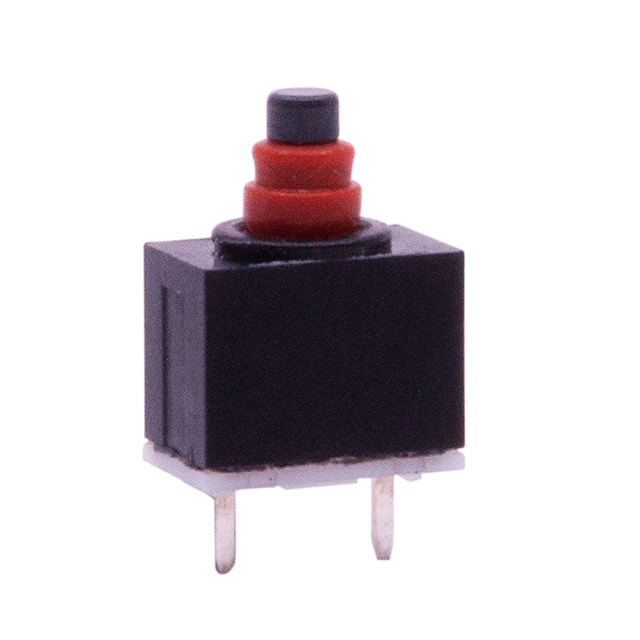

TD1150AF100Q
ActiveE-Switch
SWITCH DETECTOR SPST-NO 0.1A 12V
Deep-Dive with AI
Search across all available documentation for this part.
TD1150AF100Q
ActiveE-Switch
SWITCH DETECTOR SPST-NO 0.1A 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TD1150AF100Q |
|---|---|
| Actuator Type | Round (Pin Plunger) |
| Circuit | SPST-NO |
| Current Rating (Amps) | 100 mA |
| Electrical Life | 300000 Cycles |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mechanical Life | 300000 Cycles |
| Mounting Type | Through Hole |
| Operating Force | 100 gf |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Switch Function | Off-Mom |
| Termination Style | PC Pin |
| Voltage Rating - DC | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.32 | |
| 10 | $ 2.19 | |||
| 25 | $ 1.99 | |||
| 100 | $ 1.72 | |||
| 250 | $ 1.67 | |||
Description
General part information
TD1150 Series
Switch SPST-NO Through Hole
Documents
Technical documentation and resources
No documents available
