3092A X7E500

Active

Belden Inc.

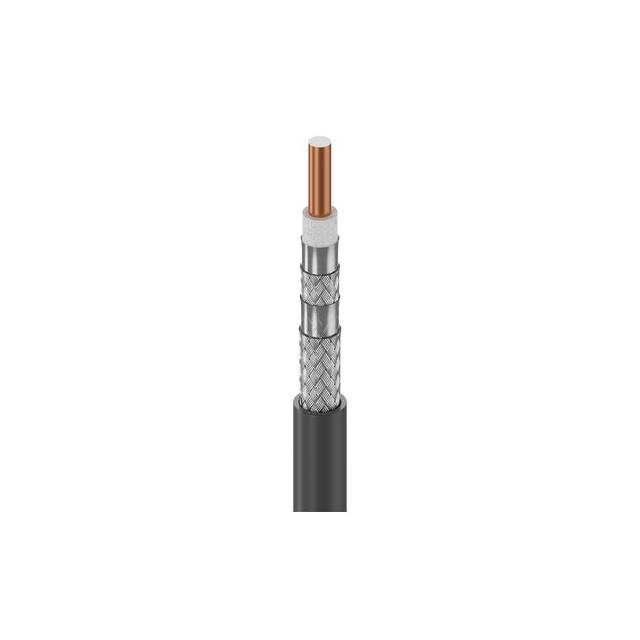

CABLE COAX RISER RG-6 18AWG 500'

Search across all available documentation for this part.

Active

Belden Inc.

CABLE COAX RISER RG-6 18AWG 500'

Technical Specifications

Parameters and characteristics for this part

Specification	3092A X7E500

Cable Group	RG-6
Cable Type	Coaxial - Riser
Conductor Material	Steel, Copper Coated
Conductor Strand	Solid
Dielectric Diameter [diameter]	0.18 in
Dielectric Diameter [diameter]	4.57 mm
Dielectric Material	Foam Polyethylene (FPE)
Features	Quad Shield
Impedance	75 Ohms
Jacket (Insulation) Diameter [diameter]	7.57 mm
Jacket (Insulation) Diameter [diameter]	0.298 "
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Blue
Length	152.4 m
Length	6000 in
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-30 ░C
Shield Coverage	100 %, 60 %, 40 %
Shield Material	Aluminum
Shield Type	Foil, Braid
VoP, Velocity of Propagation	82
Wire Gauge	18 AWG

Part	Wire Gauge	Shield Coverage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Conductor Strand	Features	Dielectric Material	Cable Group	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Conductor Material	Cable Type	Impedance	Length	Length	VoP, Velocity of Propagation	Shield Type	Jacket (Insulation) Material	Shield Material	Operating Temperature [Min]	Operating Temperature [Max]	Shield Coverage [custom]
Belden Inc. 3092A X7E500	18 AWG	40 % 60 % 100 %	7.57 mm	0.298 "	Blue	Solid	Quad Shield	Foam Polyethylene (FPE)	RG-6	0.18 in	4.57 mm	Copper Coated Steel	Coaxial - Riser	75 Ohms	152.4 m	6000 in	82	Braid Foil	Poly-Vinyl Chloride (PVC)	Aluminum	-30 ░C	75 ░C
Belden Inc. 3092A 010500	18 AWG		7.57 mm	0.298 "	Black	Solid		Foam Polyethylene (FPE)	RG-6	0.18 in	4.57 mm	Copper Coated Steel	Coaxial	75 Ohms	152.4 m	6000 in	82	Double Braid Foil	Poly-Vinyl Chloride (PVC)	Aluminum	-30 ░C	75 ░C	40 % 60 % 100 %
Belden Inc. 3092A 0101000	18 AWG	40 % 60 % 100 %	7.57 mm	0.298 "	Black	Solid	Quad Shield	Foam Polyethylene (FPE)	RG-6	0.18 in	4.57 mm	Copper Coated Steel	Coaxial - Riser	75 Ohms	304.8 m	1000 ft	82	Braid Foil	Poly-Vinyl Chloride (PVC)	Aluminum	-30 ░C	75 ░C
Belden Inc. 3092A 01010000	18 AWG	40 % 60 % 100 %	7.57 mm	0.298 "	Black	Solid	Quad Shield	Foam Polyethylene (FPE)	RG-6	0.18 in	4.57 mm	Copper Coated Steel	Coaxial - Riser	75 Ohms	3048 m	10000 '	82	Braid Foil	Poly-Vinyl Chloride (PVC)	Aluminum	-30 ░C	75 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 3.03

General part information

Coaxial - Riser Cable 18 AWG RG-6 500.0' (152.40m) 75 Ohms
