Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | P-NUCLEO-53L8A1 | VL53L8 Series |
|---|---|---|
| - | - | |
| Contents | - | Accessories, Board(s) |
| Embedded | MCU, 32-Bit | MCU, 32-Bit |
| Embedded | True | True |
| Function | - | Light, 3D Time-of-Flight (ToF) |
| Interconnect System | - | Arduino R3 Shield |
| Interface | Serial, I2C, SPI | Serial, I2C, SPI |
| Platform | - | Nucleo |
| Sensor Type | Light, 3D Time-of-Flight (ToF) | Light, 3D Time-of-Flight (ToF) |
| Suggested Programming Environment | - | STM32Cube |
| Supplied Contents | Accessories, Board(s) | Accessories, Board(s) |
| Type | - | Sensor |
| Utilized IC / Part | STM32F401RE, VL53L8CA | STM32F401RE, VL53L8CA |
| Voltage - Supply | 5 V | 5 V |
| Voltage - Supply | USB | USB |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
VL53L8 Series

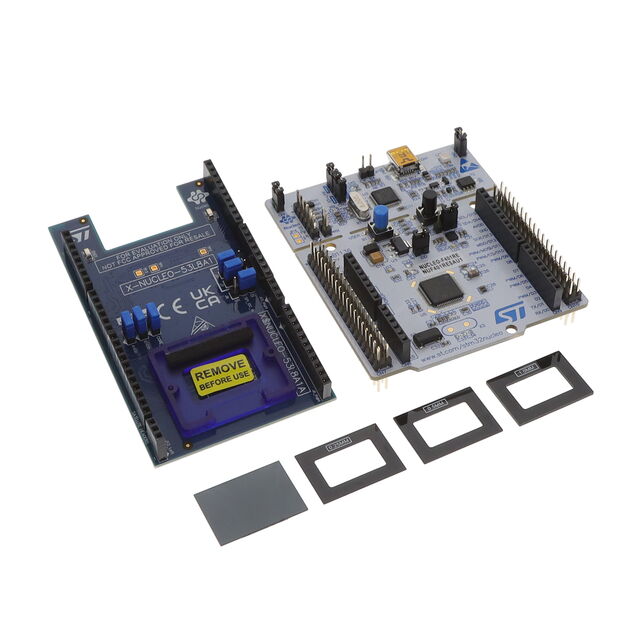

STM32 Nucleo pack with X-NUCLEO-53L8A1 expansion board and NUCLEO-F401RE development board
| Part | Sensor Type | Utilized IC / Part | Voltage - Supply | Voltage - Supply | Interface | Embedded | Embedded | Supplied Contents | Suggested Programming Environment | Interconnect System | Function | Contents | Platform | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics P-NUCLEO-53L8A1 | ||||||||||||||
STMicroelectronics P-NUCLEO-53L8A1 | Light, 3D Time-of-Flight (ToF) | STM32F401RE, VL53L8CA | 5 V | USB | I2C, Serial, SPI | 32-Bit, MCU | Accessories, Board(s) | |||||||
STMicroelectronics P-NUCLEO-53L8A1 | ||||||||||||||
STMicroelectronics P-NUCLEO-53L8A1 | ||||||||||||||
STMicroelectronics P-NUCLEO-53L8A1 | ||||||||||||||
STMicroelectronics X-NUCLEO-53L8A1 | VL53L8CA | STM32Cube | Arduino R3 Shield | Light, 3D Time-of-Flight (ToF) | Accessories, Board(s) | Nucleo | Sensor | |||||||
STMicroelectronics X-NUCLEO-53L8A1 |
Description
General part information
VL53L8 Series
The P-NUCLEO-53L8A1 is a complete evaluation kit that allows you to learn, evaluate, and develop applications using the different commercial products of the VL53L8 series Time-of-Flight sensors.
Two products are supported: VL53L8CX and VL53L8CH.
The VL53L8CX is an 8x8 multizone, ToF ranging sensor, which enhances performance under ambient light with a reduced power consumption. Based on STMicroelectronics FlightSense technology, the sensor is designed to provide accurate ranging up to 400 cm with a 65° diagonal FoV.
