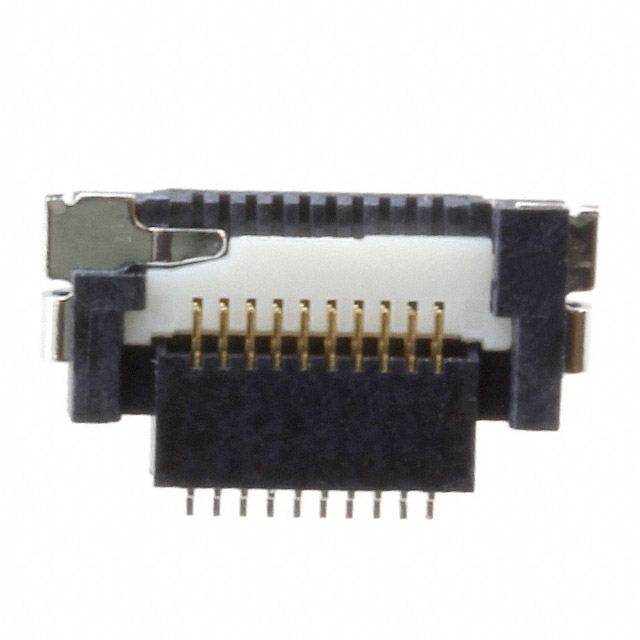

FA5S010HP1

Obsolete

JAE Electronics

CONN FPC BOTTOM 10POS 0.5MM R/A

Search across all available documentation for this part.

Obsolete

JAE Electronics

CONN FPC BOTTOM 10POS 0.5MM R/A

Technical Specifications

Parameters and characteristics for this part

Specification	FA5S010HP1

Actuator Color	White
Actuator Material	Glass Filled, Polyamide (PA), Nylon
Cable End Type	Tapered
Connector/Contact Type	Contacts, Bottom
Contact Finish	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	0.8 A
Features	Zero Insertion Force (ZIF), Solder Retention
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FPC
Height Above Board [z]	0.057 in
Height Above Board [z]	1.45 mm
Housing Color	Black
Housing Material	Liquid Crystal Polymer (LCP), Glass Filled
Locking Feature	Flip Lock
Material Flammability Rating	UL94 V-0
Mating Cycles	20
Mounting Type	Surface Mount, Right Angle
Number of Positions	10
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination	Solder
Voltage Rating	50 V

Part	Termination	Housing Color	Flat Flex Type	Locking Feature	Mating Cycles	Features	Contact Finish	Material Flammability Rating	Height Above Board [z]	Height Above Board [z]	Actuator Material	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Mounting Type	Pitch [x]	Pitch [x]	Actuator Color	Number of Positions	Housing Material	Cable End Type	Voltage Rating	Connector/Contact Type	FFC, FCB Thickness	Contact Material
JAE Electronics FA5S010HP1	Solder	Black	FPC	Flip Lock	20	Solder Retention Zero Insertion Force (ZIF)	Gold	UL94 V-0	0.057 in	1.45 mm	Glass Filled Nylon Polyamide (PA)	85 °C	-40 °C	0.8 A	Surface Mount Right Angle	0.5 mm	0.02 in	White	10	Liquid Crystal Polymer (LCP) Glass Filled	Tapered	50 V	Contacts Bottom	0.3 mm	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

10 Position FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
