B-8-9
ActivePomona Electronics

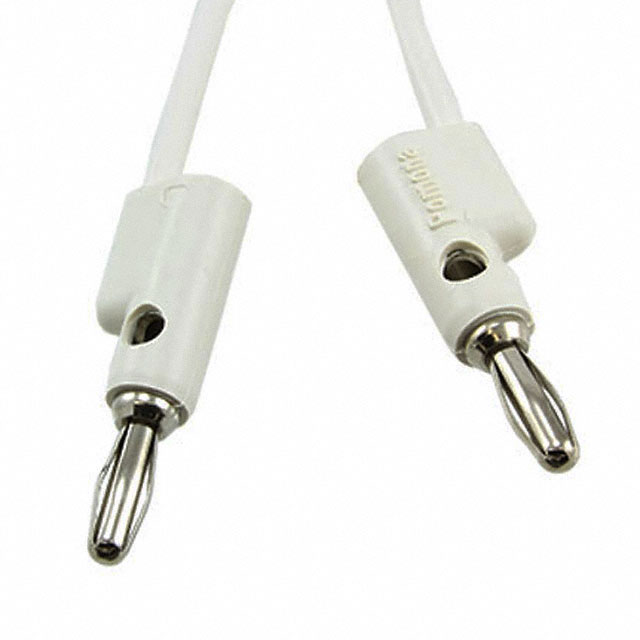

TEST LEAD BANANA TO BANANA 8"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
B-8-9
ActivePomona Electronics
TEST LEAD BANANA TO BANANA 8"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | B-8-9 |
|---|---|
| 1st Connector | Single, Stackable, Banana Plug |
| 2nd Connector | Banana Plug, Single, Stackable |
| Cable Length | 8 " |
| Cable Length | 203.2 mm |
| Configuration | Banana to Banana |
| Contents | 1 Lead, White |
| Current Rating (Amps) | 15 A |
| Material - Insulation | Poly-Vinyl Chloride (PVC) |
| Stacking Method | Multi-Stacking, Front and Vertical |
| Type | Patch Cord |
| Voltage - Rated | 5 kV |
| Voltage - Rated | 5 kV |
| Wire Gauge | 18 AWG |
B-8 Series
| Part | Material - Insulation | Stacking Method | Type | Voltage - Rated | Voltage - Rated | Configuration | Current Rating (Amps) | Cable Length | Cable Length | 1st Connector | Contents | 2nd Connector | Wire Gauge | Contents [custom] | Contents [custom] | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Pomona Electronics | Poly-Vinyl Chloride (PVC) | Multi-Stacking Front and Vertical | Patch Cord | 5 kV | 5 kV | Banana to Banana | 15 A | 8 " | 203.2 mm | Banana Plug Single Stackable | 1 Lead Yellow | Banana Plug Single Stackable | 18 AWG | |||
Pomona Electronics | Poly-Vinyl Chloride (PVC) | Multi-Stacking Front and Vertical | Patch Cord | 5 kV | 5 kV | Banana to Banana | 15 A | 8 " | 203.2 mm | Banana Plug Single Stackable | Banana Plug Single Stackable | 18 AWG | ||||
Pomona Electronics | Poly-Vinyl Chloride (PVC) | Multi-Stacking Front and Vertical | Patch Cord | 5 kV | 5 kV | Banana to Banana | 15 A | 8 " | 203.2 mm | Banana Plug Single Stackable | 1 Lead Orange | Banana Plug Single Stackable | 18 AWG | |||
Pomona Electronics | Poly-Vinyl Chloride (PVC) | Multi-Stacking Front and Vertical | Patch Cord | 5 kV | 5 kV | Banana to Banana | 15 A | 8 " | 203.2 mm | Banana Plug Single Stackable | 1 Lead White | Banana Plug Single Stackable | 18 AWG | |||
Pomona Electronics | Poly-Vinyl Chloride (PVC) | Multi-Stacking Front and Vertical | Patch Cord | 5 kV | 5 kV | Banana to Banana | 15 A | 8 " | 203.2 mm | Banana Plug Single Stackable | Red | Banana Plug Single Stackable | 18 AWG | 1 | ||
Pomona Electronics | Poly-Vinyl Chloride (PVC) | Multi-Stacking Front and Vertical | Patch Cord | 5 kV | 5 kV | Banana to Banana | 15 A | 8 " | 203.2 mm | Banana Plug Single Stackable | Red | Banana Plug Single Stackable | 18 AWG | 1 | ||
Pomona Electronics | Poly-Vinyl Chloride (PVC) | Multi-Stacking Front and Vertical | Patch Cord | 5 kV | 5 kV | Banana to Banana | 15 A | 8 " | 203.2 mm | Banana Plug Single Stackable | 1 Lead Blue | Banana Plug Single Stackable | 18 AWG | |||
Pomona Electronics | Poly-Vinyl Chloride (PVC) | Multi-Stacking Front and Vertical | Patch Cord | 5 kV | 5 kV | Banana to Banana | 15 A | 8 " | 203.2 mm | Banana Plug Single Stackable | Gray | Banana Plug Single Stackable | 18 AWG | 1 | ||
Pomona Electronics | Poly-Vinyl Chloride (PVC) | Multi-Stacking Front and Vertical | Patch Cord | 5 kV | 5 kV | Banana to Banana | 15 A | 8 " | 203.2 mm | Banana Plug Single Stackable | Brown | Banana Plug Single Stackable | 18 AWG | 1 Cable | ||
Pomona Electronics | Poly-Vinyl Chloride (PVC) | Multi-Stacking Front and Vertical | Patch Cord | 5 kV | 5 kV | Banana to Banana | 15 A | 8 " | 203.2 mm | Banana Plug Single Stackable | 1 Lead Black | Banana Plug Single Stackable | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.79 | |
Description
General part information
B-8 Series
8.0" (203.20mm) Banana Plug, Single, Stackable To Banana Plug, Single, Stackable Patch Cord 5000VDC (5kV)
