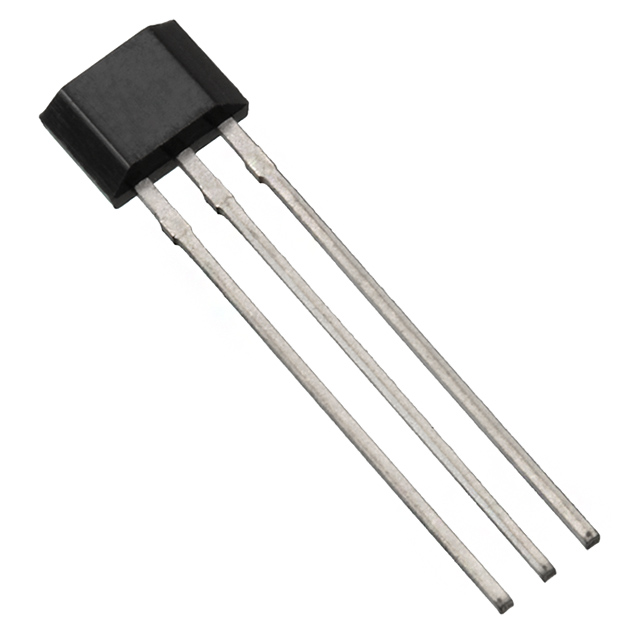

AH372-P-B

Active

Diodes Inc

NRND = NOT RECOMMENDED FOR NEW DESIGN

Deep-Dive with AI

DocumentsDatasheet Recommended Soldering Techniques +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AH372-P-B

Current - Output (Max) [Max]	25 mA
Current - Supply (Max) [Max]	4 mA
Function	Latch
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	3-SSIP
Polarization	South Pole, North Pole
Sensing Range	5 mT, -5 mT
Supplier Device Package	3-SIP
Technology	Hall Effect
Test Condition	25 °C
Voltage - Supply [Max]	20 V
Voltage - Supply [Min]	2.2 V

AH372 Series

NRND = Not Recommended for New Design

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Supplier Device Package	Sensing Range	Test Condition	Technology	Polarization	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max) [Max]	Output Type	Function	Current - Supply (Max) [Max]	Mounting Type
Diodes Inc AH372-P-A	20 V	2.2 V	3-SSIP	3-SIP	-5 mT 5 mT	25 °C	Hall Effect	North Pole South Pole	-40 °C	125 °C	25 mA	Analog Voltage	Latch	4 mA	Through Hole
Diodes Inc AH372-W-7	20 V	2.2 V		SC-59-6	-5 mT 5 mT	25 °C	Hall Effect	North Pole South Pole	-40 °C	125 °C	25 mA	Analog Voltage	Latch	4 mA	Surface Mount
Diodes Inc AH372-P-B	20 V	2.2 V	3-SSIP	3-SIP	-5 mT 5 mT	25 °C	Hall Effect	North Pole South Pole	-40 °C	125 °C	25 mA		Latch	4 mA	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.57
		10	$ 0.44
		25	$ 0.38
		50	$ 0.36
		100	$ 0.31
		500	$ 0.27
		1000	$ 0.24

Description

General part information

AH372 Series

AH372 is a single-digital-output Hall-Effect latch sensor with internal pull-up resistor for high temperature operation. The device includes an on-chip Hall voltage generator for magnetic sensing, an amplifier to amplify Hall voltage, and a comparator to provide switching hysteresis for noise rejection, and an output driver with a pull-up resistor. An internal band-gap regulator provides a temperature compensated supply voltage for internal circuits and allows a wide operating supply range.
