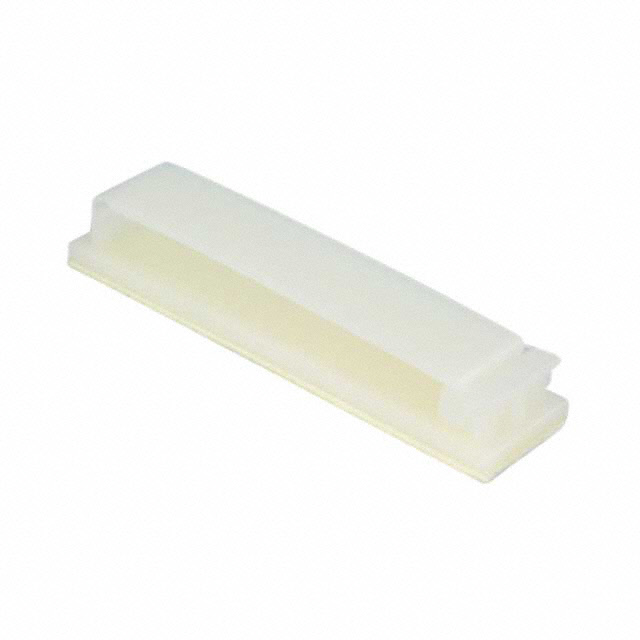

FCW-50-19

Active

Essentra Access Solutions

CBL CLIP FLAT NATURAL ADHESIVE

Search across all available documentation for this part.

Active

Essentra Access Solutions

CBL CLIP FLAT NATURAL ADHESIVE

Technical Specifications

Parameters and characteristics for this part

Specification	FCW-50-19

Adhesive	Acrylic Based (RMS-350)
Color	Natural
Features	Flame Retardant
Height [z]	0.52 in
Height [z]	13.21 mm
Length	77.22 mm
Length [x]	3.04 "
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Adhesive
Opening Size	63.25 mm
Opening Size [z]	2.49 in
Type	Flat, Clip
Type Attributes	Hinged, Top Lock
Width [y]	0.75 in
Width [y]	19.05 mm

Part	Width [y]	Width [y]	Adhesive	Length [x]	Length	Type Attributes	Features	Mounting Type	Material Flammability Rating	Color	Height [z]	Height [z]	Material	Opening Size [z]	Opening Size	Type	Length
Essentra Access Solutions FCW-50-19	0.75 in	19.05 mm	Acrylic Based (RMS-350)	3.04 "	77.22 mm	Hinged Top Lock	Flame Retardant	Adhesive	UL94 V-0	Natural	0.52 in	13.21 mm	Polyamide (PA66) Nylon 6/6	2.49 in	63.25 mm	Clip Flat
Essentra Access Solutions FCW-40-01	0.75 in	19.05 mm	Acrylic Based (RMS-350)		53.09 mm	Hinged Top Lock		Adhesive	UL94 V-2	Natural	0.53 in	13.46 mm	Polyamide (PA66) Nylon 6/6	1.55 in	39.37 mm	Clip Flat	2.09 in
Essentra Access Solutions FCW-40-19	0.75 in	19.05 mm	Acrylic Based (RMS-350)		53.09 mm	Hinged Top Lock	Flame Retardant	Adhesive	UL94 V-0	Natural	0.53 in	13.46 mm	Polyamide (PA66) Nylon 6/6	1.55 in	39.37 mm	Clip Flat	2.09 in
Essentra Access Solutions FCW-30-01	0.75 in	19.05 mm	Acrylic Based (RMS-350)		45.5 mm	Hinged Top Lock		Adhesive	UL94 V-2	Natural	0.52 in	13.21 mm	Polyamide (PA66) Nylon 6/6	1.24 in	31.5 mm	Clip Flat	1.791 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Clip, Flat Natural Adhesive 2.490" (63.25mm)
