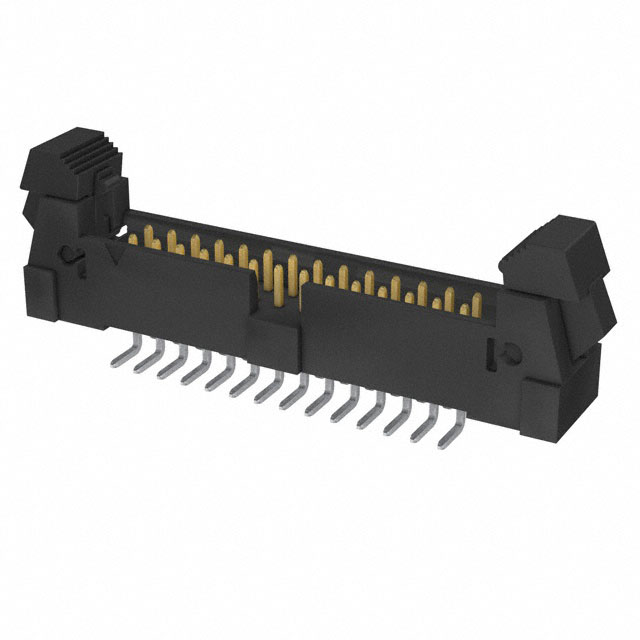

EHT-114-01-L-D-SM

Active

Samtec Inc.

CONN HEADER SMD 28POS 2MM

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HEADER SMD 28POS 2MM

Technical Specifications

Parameters and characteristics for this part

Specification	EHT-114-01-L-D-SM

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	15 µin
Contact Finish Thickness - Mating	0.38 µm
Contact Length - Mating	3.05 mm
Contact Length - Mating	0.12 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Latch Lock/Eject Hooks
Features	Keying Slot
Insulation Color	Black
Insulation Height	0.37 in
Insulation Height	9.4 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	28
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Contact Finish - Mating	Connector Type	Termination	Fastening Type	Style	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Mating	Contact Length - Mating	Insulation Material	Row Spacing - Mating	Row Spacing - Mating	Number of Positions Loaded	Shrouding	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Contact Shape	Contact Material	Mounting Type	Insulation Color	Pitch - Mating [x]	Pitch - Mating [x]	Number of Positions	Contact Type	Material Flammability Rating	Current Rating (Amps)	Features
Samtec Inc. EHT-114-01-L-D-SM	Gold	Header	Solder	Latch Lock/Eject Hooks	Board to Cable/Wire	0.37 in	9.4 mm	-55 °C	125 °C	3.05 mm	0.12 in	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	All	Shrouded - 4 Wall	2	15 µin	0.38 µm	Tin	Square	Phosphor Bronze	Surface Mount	Black	0.079 in	2 mm	28	Male Pin	UL94 V-0	3 A	Keying Slot

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	500	$ 5.42

General part information

Connector Header Surface Mount 28 position 0.079" (2.00mm)
