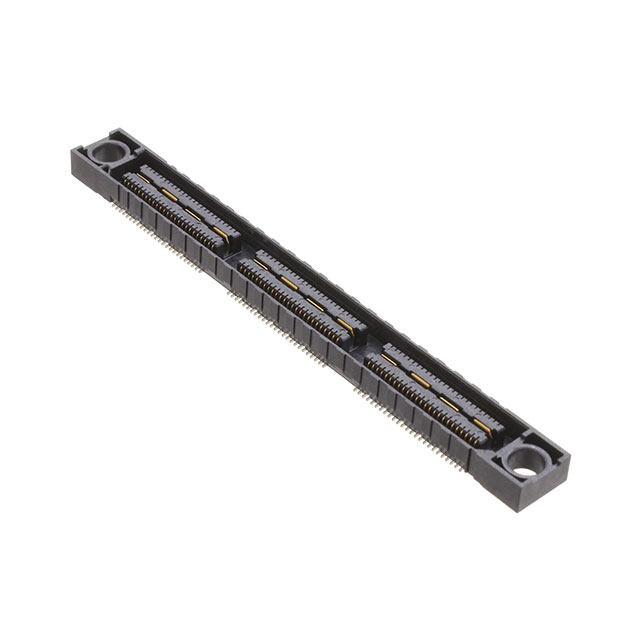

QSS-075-01-F-D-A-GP

Active

Samtec Inc.

CONN SOCKET 150POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet QSS Series Other Related Documents 03 +2

QSS-075-01-F-D-A-GP

Active

Samtec Inc.

CONN SOCKET 150POS SMD GOLD

Deep-Dive with AI

DocumentsDatasheet QSS Series Other Related Documents 03 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QSS-075-01-F-D-A-GP

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	3 Áin
Contact Finish Thickness	0.076 Ám
Height Above Board	0.143 in
Height Above Board	3.63 mm
Mounting Type	Surface Mount
Number of Positions	150
Number of Rows	2
Pitch [x]	0.64 mm
Pitch [x]	0.025 in

QSS-075 Series

Part	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Pitch [x]	Pitch [x]	Connector Type	Number of Rows	Mounting Type	Height Above Board	Height Above Board	Number of Positions	Features	Mated Stacking Heights
Samtec Inc. QSS-075-01-F-D-A	3 Áin	0.076 Ám	Gold	0.64 mm	0.025 in	Socket Center Strip Contacts	2	Surface Mount	0.143 in	3.63 mm	150
Samtec Inc. QSS-075-01-L-D-K	10 Áin	0.25 Ám	Gold	0.64 mm	0.025 in	Socket Center Strip Contacts	2	Surface Mount	0.143 in	3.63 mm	150	Ground Bus (Plane) Pick and Place	5 mm
Samtec Inc. QSS-075-01-L-D-LC	10 Áin	0.25 Ám	Gold	0.64 mm	0.025 in	Socket Center Strip Contacts	2	Surface Mount	0.143 in	3.63 mm	150	Board Lock Ground Bus (Plane)	5 mm
Samtec Inc. QSS-075-01-F-D-RA-WT	3 Áin	0.076 Ám	Gold	0.64 mm	0.025 in	Socket Center Strip Contacts	2	Surface Mount Right Angle	0.328 in	8.33 mm	150	Ground Bus (Plane) Solder Retention
Samtec Inc. QSS-075-01-F-D-A-TR	3 Áin	0.076 Ám	Gold	0.64 mm	0.025 in	Socket Center Strip Contacts	2	Surface Mount	0.143 in	3.63 mm	150		5 mm
Samtec Inc. QSS-075-01-H-D-A-GP-K	30 Áin	0.76 Ám	Gold	0.64 mm	0.025 in	Socket Center Strip Contacts	2	Surface Mount	0.143 in	3.63 mm	150	Board Guide Ground Bus (Plane) Mating Guide Pick and Place	5 mm
Samtec Inc. QSS-075-01-F-D	3 Áin	0.076 Ám	Gold	0.64 mm	0.025 in	Socket Center Strip Contacts	2	Surface Mount	0.143 in	3.63 mm	150	Ground Bus (Plane)	5 mm
Samtec Inc. QSS-075-01-F-D-GP	3 Áin	0.076 Ám	Gold	0.64 mm	0.025 in	Socket Center Strip Contacts	2	Surface Mount	0.143 in	3.63 mm	150	Ground Bus (Plane) Mating Guide	5 mm
Samtec Inc. QSS-075-01-F-D-A-GP	3 Áin	0.076 Ám	Gold	0.64 mm	0.025 in	Socket Center Strip Contacts	2	Surface Mount	0.143 in	3.63 mm	150
Samtec Inc. QSS-075-01-C-D-A-GP-K	50 µin	1.27 µm	Gold	0.64 mm	0.025 in	Socket Center Strip Contacts	2	Surface Mount	0.143 in	3.63 mm	150	Board Guide Ground Bus (Plane) Mating Guide Pick and Place	5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 13.57
		10	$ 12.85
		25	$ 12.37
		50	$ 12.07
		100	$ 11.29
