General part information
Thick Film Resistors - Through Hole
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | MHR0624SA507F70 | MHR0624SA Series |
|---|---|---|
| Composition | Thick Film | Thick Film |
| Features | High Voltage | High Voltage |
| Height - Seated (Max) [Max] | 0.354 in | 0.354 in |
| Height - Seated (Max) [Max] | 9 mm | 9 mm |
| Number of Terminations | 2 | 2 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | Radial | Radial |
| Power (Watts) | 1.6 W | 1.6 W |
| Resistance | 500 MOhms | 50 - 500 MOhms |
| Size / Dimension [x] | 0.996 in | 0.996 in |
| Size / Dimension [x] | 25.3 mm | 25.3 mm |
| Size / Dimension [y] | 2.5 mm | 2.5 mm |
| Size / Dimension [y] | 0.098 in | 0.098 in |
| Tolerance | 1 % | 1 % |
Thick Film Resistors - Through Hole
| Part | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Features | Resistance | Tolerance | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Number of Terminations | Composition | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

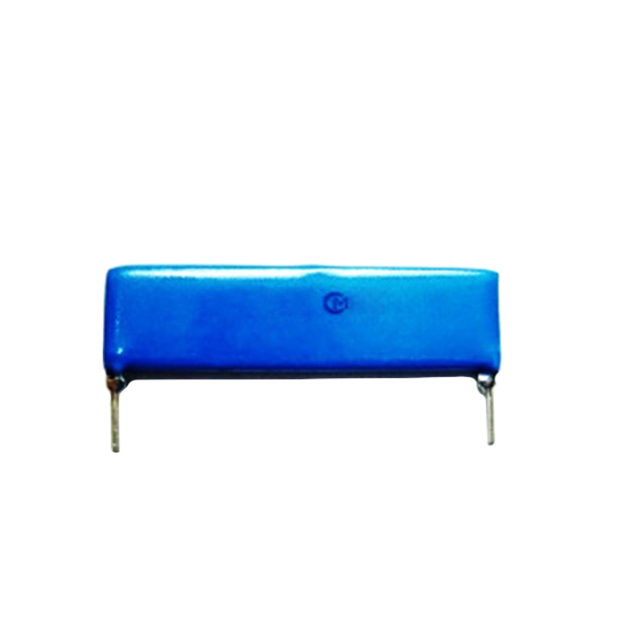

Murata Power Solutions Inc. MHR0624SA507F70 | Radial | 125 °C | -40 °C | 0.996 in | 25.3 mm | 2.5 mm | 0.098 in | High Voltage | 500 MOhms | 1 % | 0.354 in | 9 mm | 2 | Thick Film | 1.6 W |
Murata Power Solutions Inc. MHR0624SA506F70 | Radial | 125 °C | -40 °C | 0.996 in | 25.3 mm | 2.5 mm | 0.098 in | High Voltage | 50 MOhms | 1 % | 0.354 in | 9 mm | 2 | Thick Film | 1.6 W |
