Technical Specifications
Parameters and characteristics for this part
| Specification | STEVAL-ISA095V1 |
|---|---|
| Board Type | Fully Populated |
| Current - Output | 3 A |
| Frequency - Switching | 850 kHz |
| Main Purpose | DC/DC, Step Down |
| Outputs and Type | Non-Isolated |
| Outputs and Type | 1 |
| Regulator Topology | Buck |
| Supplied Contents | Board(s) |
| Utilized IC / Part | ST1S14 |
| Voltage - Output | 1.22 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 48.75 | |
Description
General part information
STEVAL-ISA095V1 Series

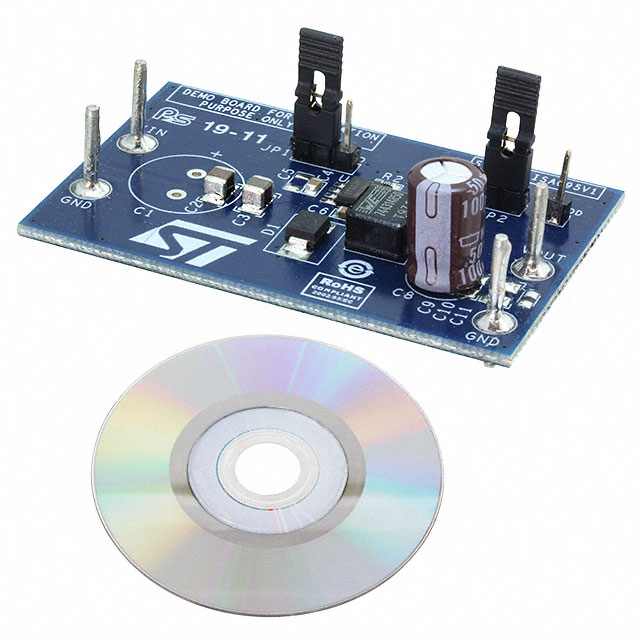

The STEVAL-ISA095V1 demonstration board is designed to provide an evaluation platform for testing the ST1S14, a step-down monolithic power switching regulator capable of delivering up to 3 A of output current. The high current level is possible thanks to an HSOP8 package with exposed frame.
The output voltage can be set from 1.22 V. An internal oscillator fixes the switching frequency at 850 kHz.
A Power Good open collector output validates the regulated output voltage as soon as it reaches the regulated level.
