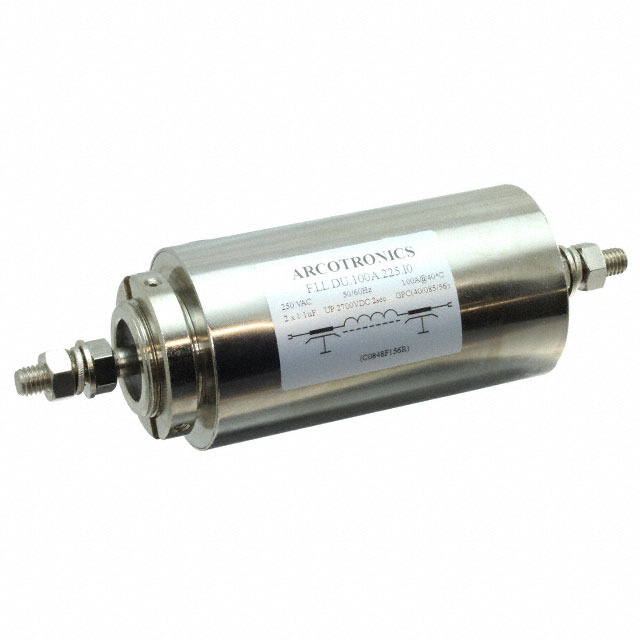

FLLDU100A225I0
ActiveKEMET
LINE FLTR 440VDC 250VAC 100A CHA
Deep-Dive with AI
Search across all available documentation for this part.
FLLDU100A225I0
ActiveKEMET
LINE FLTR 440VDC 250VAC 100A CHA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FLLDU100A225I0 |
|---|---|
| Applications | General Purpose |
| Configuration | Single Stage |
| Current | 100 A |
| Filter Type | Single Phase |
| Frequency - Operating [Max] | 60 Hz |
| Frequency - Operating [Min] | 50 Hz |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Termination Style | Threaded Post (M8) |
| Voltage - Rated AC | 250 V |
| Voltage - Rated DC | 440 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 82.42 | |
Description
General part information
FLLDU1 Series
Single Phase EMC/EMI Line Filter 100 A 250V 440V 50/60Hz Single Stage Threaded Post (M8)
Documents
Technical documentation and resources
