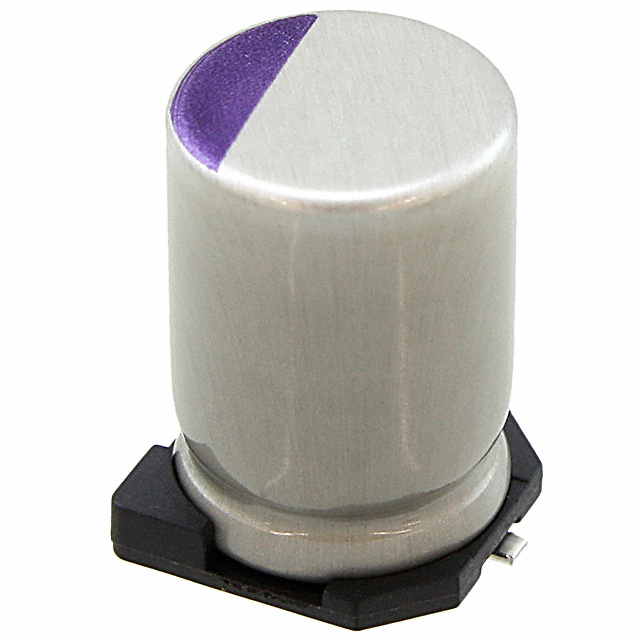

16SVPC270M

Active

Panasonic Industrial Automation Sales

CAP ALUM POLY 270UF 20% 16V SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

16SVPC270M

Active

Panasonic Industrial Automation Sales

CAP ALUM POLY 270UF 20% 16V SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	16SVPC270M

Applications	General Purpose
Capacitance	270 µF
ESR (Equivalent Series Resistance)	16 mOhm
Height - Seated (Max) [Max] [z]	12 mm
Height - Seated (Max) [Max] [z]	0.472 "
Lifetime @ Temp.	2000 Hrs
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Can - SMD
Ripple Current @ High Frequency	4.07 A
Ripple Current @ Low Frequency	203.5 mA
Size / Dimension [diameter]	0.315 "
Size / Dimension [diameter]	8 mm
Surface Mount Land Size [x]	0.327 "
Surface Mount Land Size [x]	8.3 mm
Surface Mount Land Size [y]	8.3 mm
Surface Mount Land Size [y]	0.327 in
Tolerance	20 %
Type	Polymer
Voltage - Rated	16 V

16SVPC Series

Part	Type	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	ESR (Equivalent Series Resistance)	Ripple Current @ Low Frequency	Capacitance	Ripple Current @ High Frequency	Tolerance	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Lifetime @ Temp.	Applications	Package / Case	Voltage - Rated	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Panasonic Industrial Automation Sales 16SVPC150M	Polymer	0.327 "	8.3 mm	0.327 in	8.3 mm	22 mOhms	161 mA	150 µF	3.22 A	20 %	Surface Mount	7 mm	0.276 "	0.315 "	8 mm	105 ░C	-55 °C	2000 Hrs	General Purpose	Radial Can - SMD	16 V
Panasonic Industrial Automation Sales 16SVPC120M	Polymer	0.327 "	8.3 mm	0.327 in	8.3 mm	27 mOhms	145 mA	120 µF	2.9 A	20 %	Surface Mount	7 mm	0.276 "	0.315 "	8 mm	105 ░C	-55 °C	2000 Hrs	General Purpose	Radial Can - SMD	16 V
Panasonic Industrial Automation Sales 16SVPC270M	Polymer	0.327 "	8.3 mm	0.327 in	8.3 mm	16 mOhm	203.5 mA	270 µF	4.07 A	20 %	Surface Mount			0.315 "	8 mm	105 ░C	-55 °C	2000 Hrs	General Purpose	Radial Can - SMD	16 V	12 mm	0.472 "
Panasonic Industrial Automation Sales 16SVPC68MV	Polymer	0.26 in	6.6 mm	0.26 in	6.6 mm	25 mOhm		68 µF	2.44 A	20 %	Surface Mount	6 mm	0.236 in	0.248 in	6.3 mm	105 ░C	-55 °C	2000 Hrs	General Purpose	Radial Can - SMD	16 V
Panasonic Industrial Automation Sales 16SVPC39M	Polymer	0.209 in	5.3 mm	0.209 in	5.3 mm	35 mOhms	91 mA	39 µF	1.82 A	20 %	Surface Mount	6 mm	0.236 in	0.197 "	5 mm	105 ░C	-55 °C	2000 Hrs	General Purpose	Radial Can - SMD	16 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.46
		10	$ 1.20
		50	$ 1.12
		100	$ 0.88
	Digi-Reel®	1	$ 1.46
		10	$ 1.20
		50	$ 1.12
		100	$ 0.88
	Tape & Reel (TR)	400	$ 0.82
		800	$ 0.76
		1200	$ 0.74
		2000	$ 0.72
		2800	$ 0.72
		4000	$ 0.70

Description

General part information

16SVPC Series

270 µF 16 V Aluminum - Polymer Capacitors Radial, Can - SMD 16mOhm 2000 Hrs @ 105°C
