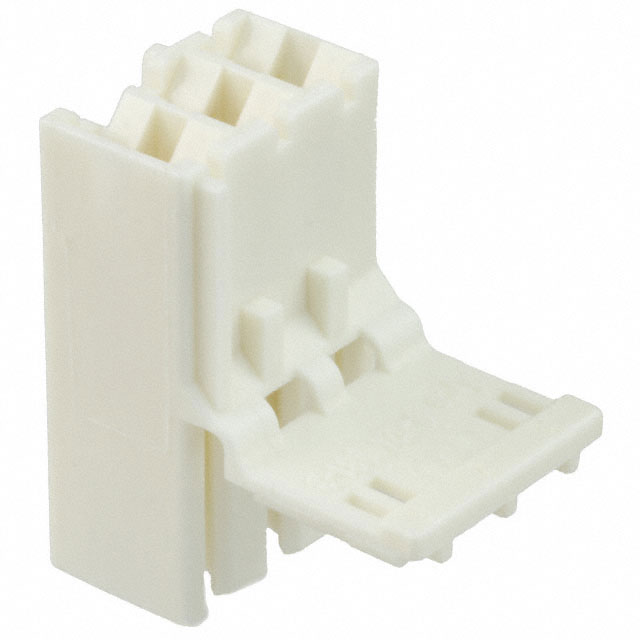

1241981-3
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 3POS 5.00MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1241981-3
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 3POS 5.00MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1241981-3 | 1241981 Series |
|---|---|---|
| Color | Natural | Natural |
| Connector Type | Receptacle | Receptacle |
| Contact Termination | Crimp | Crimp |
| Contact Type | Female Blade Socket | Female Blade Socket |
| Fastening Type | Detent Lock | Detent Lock |
| Insulation Material | Polyamide (PA6), Nylon 6 | Polyamide (PA6), Nylon 6 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch [x] | 5 mm | 5 mm |
| Pitch [x] | 0.197 in | 0.197 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 18000 | $ 0.27 | |
1241981 Series
CONN RCPT HSG 3POS 5.00MM
| Part | Pitch [x] | Pitch [x] | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Mounting Type | Color | Note | Contact Termination | Insulation Material | Fastening Type | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1241981-3 | 5 mm | 0.197 in | Receptacle | -40 °C | 105 ░C | 1 | Free Hanging (In-Line) | Natural | Contacts Not Included | Crimp | Polyamide (PA6), Nylon 6 | Detent Lock | Female Blade Socket |
TE Connectivity AMP Connectors 1241981-5 | 5 mm | 0.197 in | Receptacle | -40 °C | 105 ░C | 1 | Free Hanging (In-Line) | Natural | Contacts Not Included | Crimp | Polyamide (PA6), Nylon 6 | Detent Lock | Female Blade Socket |
Description
General part information
1241981 Series
3 Rectangular Connectors - Housings Receptacle Natural 0.197" (5.00mm)
Documents
Technical documentation and resources
