Battery Products
796136-1
ActiveTE Connectivity Raychem Cable Protection

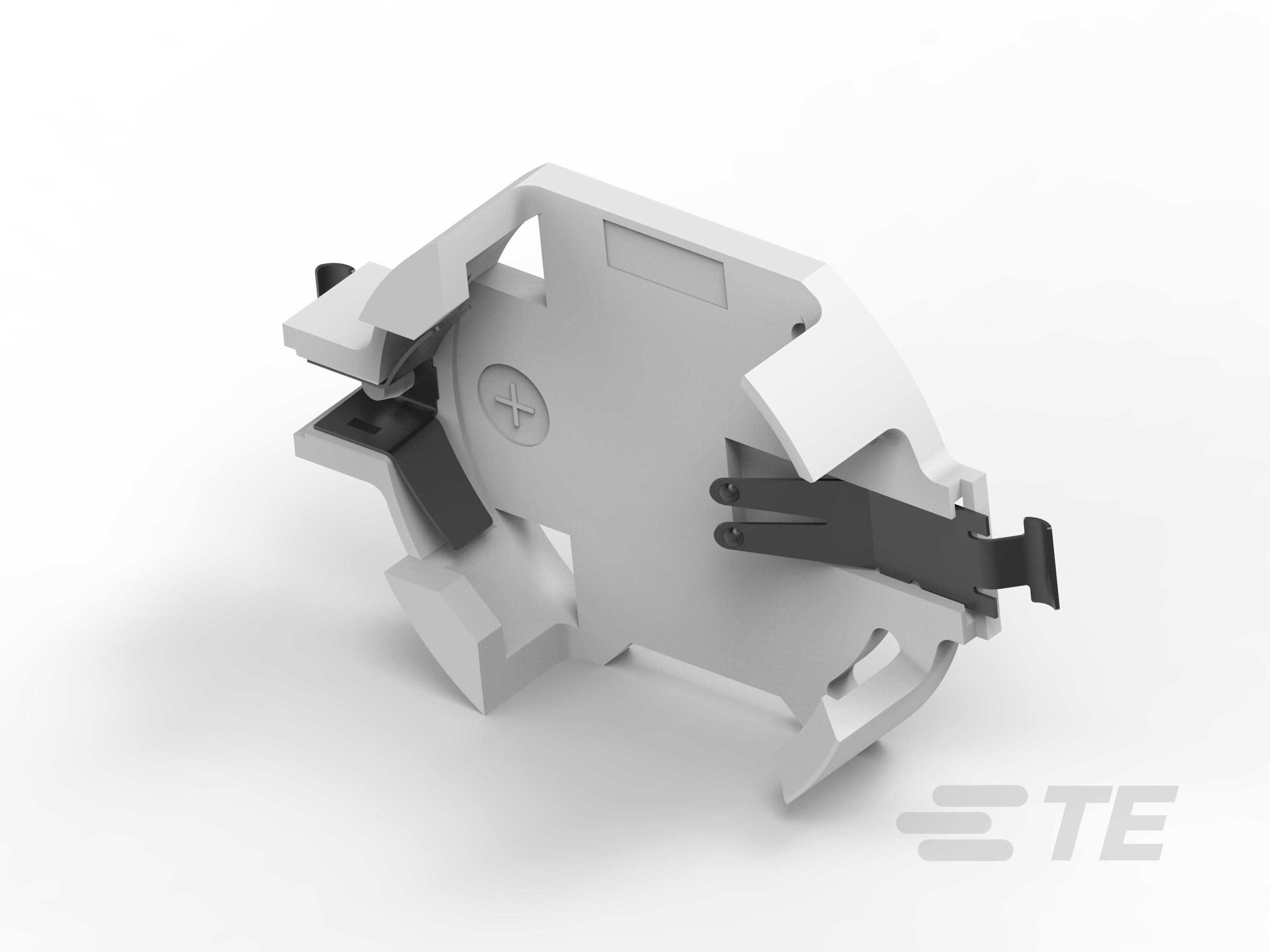

BATTERY HOLDER COIN 20MM SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 796136-1 |
|---|---|
| Battery Cell Size | Coin |
| Battery Cell Size | 20 mm |
| Battery Series | 2032 |
| Battery Type, Function | Holder, Coin Cell |
| Height Above Board | 6.6 mm |
| Height Above Board | 0.26 " |
| Mounting Type | PCB, Surface Mount |
| Number of Cells | 1 |
| Style | Holder (Open) |
| Termination Style | SMD (SMT) Tab |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.70 | |
| 10 | $ 2.40 | |||
| 50 | $ 2.37 | |||
| 100 | $ 2.17 | |||
| Digi-Reel® | 1 | $ 2.70 | ||
| 10 | $ 2.40 | |||
| 50 | $ 2.37 | |||
| 100 | $ 2.17 | |||
| Tape & Reel (TR) | 400 | $ 2.16 | ||
| 800 | $ 1.97 | |||
| 1200 | $ 1.76 | |||
| 2800 | $ 1.62 | |||
Description
General part information
796136 Series
Battery Holder (Open) Coin, 20.0mm 1 Cell SMD (SMT) Tab
Documents
Technical documentation and resources
No documents available
