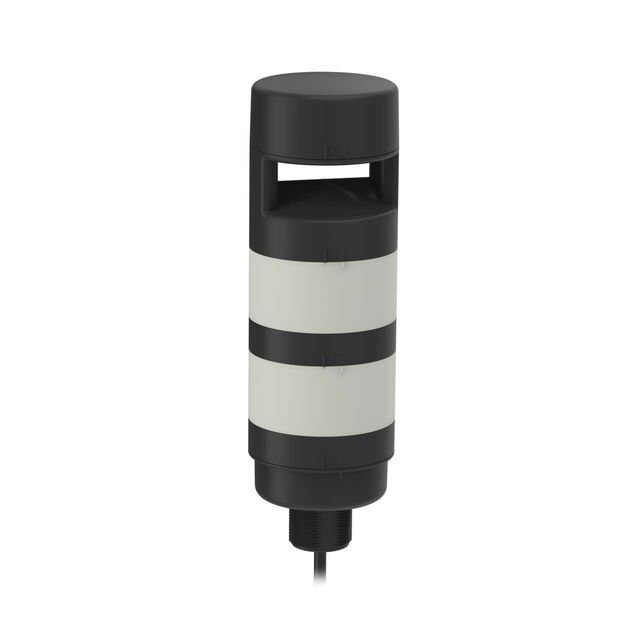

Specification	TL70GRAP

Features	Alarm, Dip Switch
Function - Audible	Programmable
Function - Lighting	Steady
Ingress Protection Description	Dust Protected
Ingress Protection IP Rating	IP50
Lamp Type	LED
Light Color	Green, Red
Number of Stacks	3
Operating Temperature (Max)	50 °C
Operating Temperature (Min)	-20 °C
Termination Style	Wire Leads
Type	Complete Unit
Voltage - Supply (Maximum)	30 VDC
Voltage - Supply (Minimum)	12 VDC

TL70GR Series

Part	Light Color	Number of Stacks	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Termination Style	Function - Lighting	Lamp Type	Function - Audible	Operating Temperature (Max)	Operating Temperature (Min)	Ingress Protection Description	Ingress Protection IP Rating	Type	Features
BANNER ENGINEERING TL70GRAP	Green Red	3	12 VDC	30 VDC	Wire Leads	Steady	LED	Programmable	50 °C	-20 °C	Dust Protected	IP50	Complete Unit	Alarm Dip Switch
BANNER ENGINEERING TL70GRT	Green Red	2	12 VDC	30 VDC	Wire Leads	Steady	LED		50 °C	-40 °C	Dust Tight Water Resistant	IP65	Complete Unit
BANNER ENGINEERING TL70GRYBQ	Blue Green Red Yellow	4	12 VDC	30 VDC	Connector	Steady	LED		50 °C	-40 °C	Dust Tight Water Resistant	IP65	Complete Unit
BANNER ENGINEERING TL70GRAQ	Green Red	3	12 VDC	30 VDC	Connector M12	Steady	LED	Multiple	50 °C	-40 °C	Dust Tight Water Resistant	IP65	Complete Unit	Alarm Dip Switch
BANNER ENGINEERING TL70GRQ	Green Red	2	12 VDC	30 VDC	Connector M12	Steady	LED		50 °C	-40 °C	Dust Tight Water Resistant	IP65	Complete Unit	Dip Switch
BANNER ENGINEERING TL70GRYQ	Green Red Yellow	3	12 VDC	30 VDC	Connector	Steady	LED		50 °C	-40 °C	Dust Tight Water Resistant	IP65	Complete Unit
BANNER ENGINEERING TL70GROQ	Green Orange Red	3	12 VDC	30 VDC	Connector M12	Steady	LED		50 °C	-40 °C	Dust Tight Water Resistant	IP65	Complete Unit	Dip Switch
BANNER ENGINEERING TL70GRC	Blue Green Red	2	12 VDC	30 VDC	Wire Leads	Steady	LED		50 °C	-40 °C	Dust Tight Water Resistant	IP65	Complete Unit	Dip Switch
BANNER ENGINEERING TL70GRALCQ	Green Red	3	12 VDC	30 VDC	M12	Steady	LED	Multiple	50 °C	-40 °C	Dust Tight Water Resistant	IP65	Complete Unit	Alarm Dip Switch
BANNER ENGINEERING TL70GRALMQ	Green Red	3	12 VDC	30 VDC	Connector M12	Steady	LED	Multiple	50 °C	-20 °C	Dust Protected	IP50	Complete Unit	Alarm Dip Switch
