Q-2N02R0008012i

Active

Amphenol Custom Cable

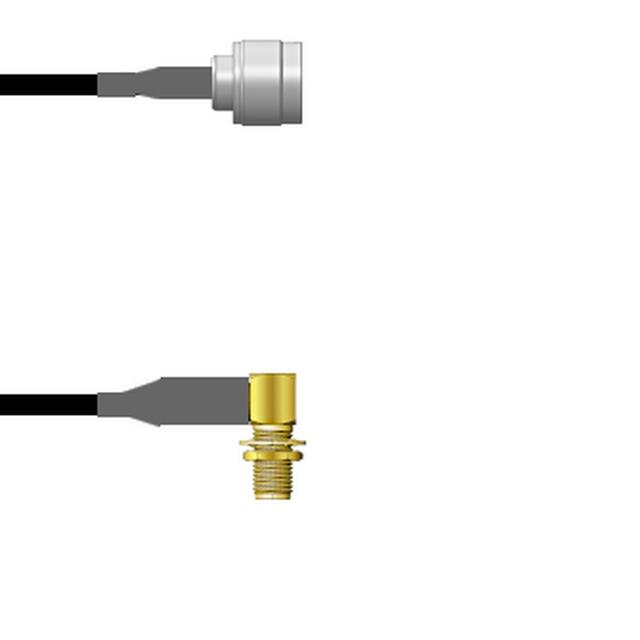

CBL ASSY SMA-NTYPE JACK-PLUG 12"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2N02R0008012i

Active

Amphenol Custom Cable

CBL ASSY SMA-NTYPE JACK-PLUG 12"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2N02R0008012i

1st Connector	SMA Jack, Right Angle
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-58
Color	Black
Features	Shielded
Frequency - Max [Max]	1 GHz
Length	12 "
Length	304.8 mm
Overall Impedance	50 Ohms
Style	SMA to N-Type

Q-2N02R0 Series

Part	1st Connector Mounting Feature	Color	1st Contact Gender	Frequency - Max [Max]	Length [x]	Length [x]	Features	1st Connector	2nd Connector	2nd Contact Gender	Overall Impedance	Style	1st Connector Mounting Type	2nd Connector Mounting Type	Cable Type	Length	Length	Length
Amphenol Custom Cable Q-2N02R0008018i	Bulkhead - Front Side Nut	Black	Female	1 GHz	457.2 mm	457.2 mm	Shielded	Right Angle SMA Jack	N-Type Plug	Male	50 Ohms	SMA to N-Type	Panel Mount	Free Hanging (In-Line)	RG-58
Amphenol Custom Cable Q-2N02R00081.5M	Bulkhead - Front Side Nut	Black	Female	1 GHz			Shielded	Right Angle SMA Jack	N-Type Plug	Male	50 Ohms	SMA to N-Type	Panel Mount	Free Hanging (In-Line)	RG-58	59.1 in	4.9 ft	1.5 m
Amphenol Custom Cable Q-2N02R0008048i	Bulkhead - Front Side Nut	Black	Female	1 GHz			Shielded	Right Angle SMA Jack	N-Type Plug	Male	50 Ohms	SMA to N-Type	Panel Mount	Free Hanging (In-Line)	RG-58	48 in	4 ft	1200 mm
Amphenol Custom Cable Q-2N02R0008024i	Bulkhead - Front Side Nut	Black	Female	1 GHz			Shielded	Right Angle SMA Jack	N-Type Plug	Male	50 Ohms	SMA to N-Type	Panel Mount	Free Hanging (In-Line)	RG-58	24 "		609.6 mm
Amphenol Custom Cable Q-2N02R0008072i	Bulkhead - Front Side Nut	Black	Female	1 GHz			Shielded	Right Angle SMA Jack	N-Type Plug	Male	50 Ohms	SMA to N-Type	Panel Mount	Free Hanging (In-Line)	RG-58	72 in	6 ft	1.8 m
Amphenol Custom Cable Q-2N02R0008012i	Bulkhead - Front Side Nut	Black	Female	1 GHz			Shielded	Right Angle SMA Jack	N-Type Plug	Male	50 Ohms	SMA to N-Type	Panel Mount	Free Hanging (In-Line)	RG-58	12 "		304.8 mm
Amphenol Custom Cable Q-2N02R0008002M	Bulkhead - Front Side Nut	Black	Female	1 GHz			Shielded	Right Angle SMA Jack	N-Type Plug	Male	50 Ohms	SMA to N-Type	Panel Mount	Free Hanging (In-Line)	RG-58	78.7 in	6.6 ft	2 m
Amphenol Custom Cable Q-2N02R00080.5M	Bulkhead - Front Side Nut	Black	Female	1 GHz			Shielded	Right Angle SMA Jack	N-Type Plug	Male	50 Ohms	SMA to N-Type	Panel Mount	Free Hanging (In-Line)	RG-58	19.69 "		50 cm
Amphenol Custom Cable Q-2N02R0008036i	Bulkhead - Front Side Nut	Black	Female	1 GHz			Shielded	Right Angle SMA Jack	N-Type Plug	Male	50 Ohms	SMA to N-Type	Panel Mount	Free Hanging (In-Line)	RG-58	36 in		91.44 cm
Amphenol Custom Cable Q-2N02R0008.75M	Bulkhead - Front Side Nut	Black	Female	1 GHz			Shielded	Right Angle SMA Jack	N-Type Plug	Male	50 Ohms	SMA to N-Type	Panel Mount	Free Hanging (In-Line)	RG-58	29.53 "		750 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 145.48
		25	$ 142.68
		50	$ 139.88
		100	$ 137.08
		250	$ 134.29

Description

General part information

Q-2N02R0 Series

Cable Assembly Coaxial SMA to N-Type RG-58 12.00" (304.80mm)

Documents

Technical documentation and resources

No documents available
