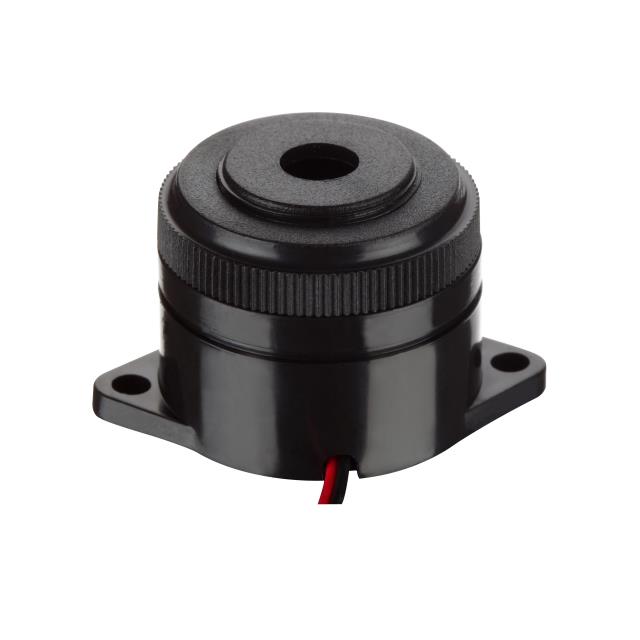

FM-24C-900L

Active

East Electronics

BUZZER 24V 41.2MM WIRE

Search across all available documentation for this part.

Active

East Electronics

BUZZER 24V 41.2MM WIRE

Technical Specifications

Parameters and characteristics for this part

BUZZER 24V 41.2MM WIRE

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Mode	Frequency	Termination	Mounting Type	Sound Pressure Level (SPL)	Voltage Range [Min]	Voltage Range [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated
East Electronics FM-24C-900L	0.965 "	24.5 mm	1.622 in	41.2 mm	Continuous	3.7 kHz	Wire Leads	Wire Lead	92 dB	12 VDC	28 VDC	-20 C	70 °C	24 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Buzzers 24 V 20mA 3.7kHz 92dB @ 24V, 100cm Wire Lead Wire Leads

Technical documentation and resources
