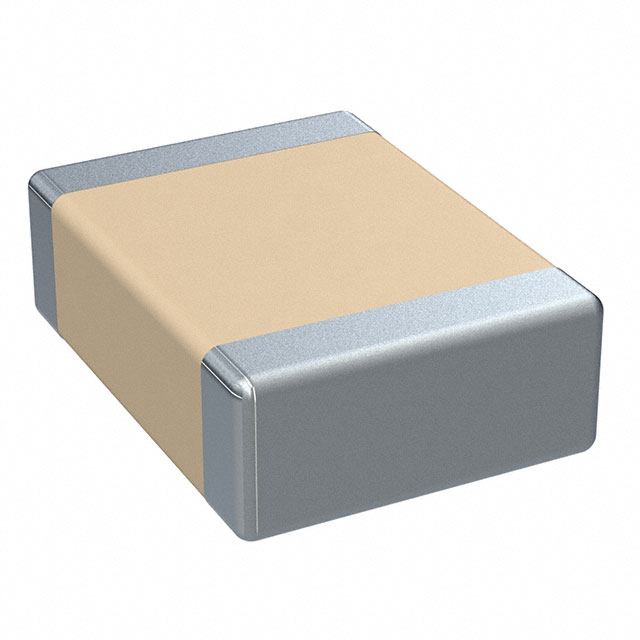

C2824C563JCGACAUTO
ActiveKEMET
CAP CER 0.056UF 500V C0G 2824
Deep-Dive with AI
Search across all available documentation for this part.
C2824C563JCGACAUTO
ActiveKEMET
CAP CER 0.056UF 500V C0G 2824
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C2824C563JCGACAUTO |
|---|---|
| Applications | Automotive |
| Capacitance | 0.056 µF |
| Features | Low ESL, High Voltage |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 2824 |
| Ratings | AEC-Q200 |
| Size / Dimension [x] | 0.28 in, 7.1 mm |
| Size / Dimension [y] | 6.1 mm, 0.24 in |
| Temperature Coefficient | NP0, C0G |
| Thickness (Max) [Max] | 0.106 " |
| Thickness (Max) [Max] | 2.7 mm |
| Tolerance | 5 % |
| Voltage - Rated | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 10.45 | |
| 10 | $ 9.05 | |||
| 50 | $ 8.13 | |||
| 100 | $ 7.06 | |||
| Digi-Reel® | 1 | $ 10.45 | ||
| 10 | $ 9.05 | |||
| 50 | $ 8.13 | |||
| 100 | $ 7.06 | |||
| Tape & Reel (TR) | 300 | $ 6.38 | ||
| 600 | $ 6.10 | |||
| 900 | $ 5.95 | |||
| 1500 | $ 5.80 | |||
Description
General part information
C2824C Series
0.056 µF ±5% 500V Ceramic Capacitor C0G, NP0 2824 (7260 Metric)
