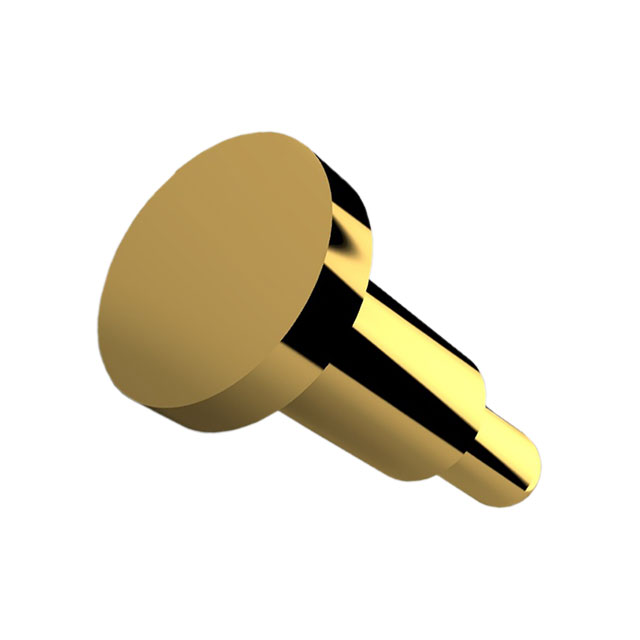

90233-AS

Active

Preci-Dip

CONTACT SPRING LOADED SMD GOLD

Search across all available documentation for this part.

Active

Preci-Dip

CONTACT SPRING LOADED SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	90233-AS

Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Brass Alloy
Contact Type	Sleeve & Plunger (Pogo Pins)
Current Rating (Amps)	2 A
Mating Cycles	40000
Maximum Working Height [Max]	6 mm
Maximum Working Height [Max]	0.236 in
Mounting Type	Surface Mount
Operating Force - Initial	20.39 gf
Operating Force - Mid Compression	40.79 gf
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pad Layout Dimension [diameter]	0.11 in
Pad Layout Dimension [diameter]	2.8 mm
Plunger Size [diameter]	0.042 in
Plunger Size [diameter]	1.07 mm

CONTACT SPRING LOADED SMD GOLD

Part	Operating Force - Initial	Contact Finish	Plunger Size [diameter]	Plunger Size [diameter]	Pad Layout Dimension [diameter]	Pad Layout Dimension [diameter]	Operating Force - Mid Compression	Current Rating (Amps)	Mating Cycles	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Maximum Working Height [Max]	Maximum Working Height [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Material
Preci-Dip 90233-AS	20.39 gf	Gold	0.042 in	1.07 mm	0.11 in	2.8 mm	40.79 gf	2 A	40000	0.76 Ám	30 Áin	Sleeve & Plunger (Pogo Pins)	6 mm	0.236 in	-55 °C	125 °C	Surface Mount	Brass Alloy
