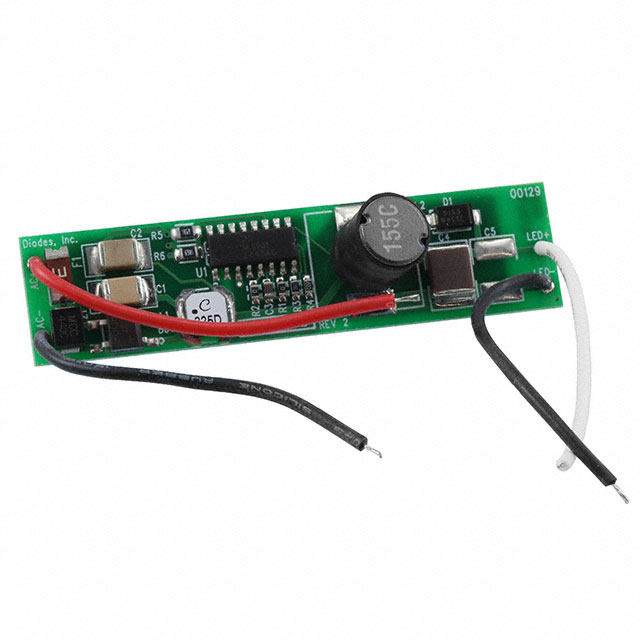

AL9901EV2

Active

Diodes Inc

EVAL BOARD FOR AL9901

Search across all available documentation for this part.

Active

Diodes Inc

EVAL BOARD FOR AL9901

Technical Specifications

Parameters and characteristics for this part

Part	Outputs and Type	Utilized IC / Part	Voltage - Output	Current - Output / Channel	Features	Supplied Contents	Voltage - Input [Max]	Voltage - Input [Min]	Package / Case	Package / Case [x]	Package / Case [y]	Voltage - Supply (Min) [Min]	Type	Supplier Device Package	Mounting Type	Voltage - Supply (Max) [Max]	Dimming	Number of Outputs	Frequency	Topology	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Internal Switch(s)
Diodes Inc AL9901EV2	1 Non-Isolated Output	AL9901	51 V	140 mA	Dimmable	Board(s)	240 VAC	100 VAC
Diodes Inc AL9901S16-13			7.5 V	400 mA					16-SOIC	0.154 in	3.9 mm	15 V	AC DC Offline Switcher	16-SO	Surface Mount	500 V	Analog PWM	1	300 kHz	Step-Down (Buck)	Backlight Lighting Signage	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 67.64

General part information

AL9901 - 1 Non-Isolated Output Dimmable LED Driver Evaluation Board

Technical documentation and resources
