122414RP

Active

Amphenol RF

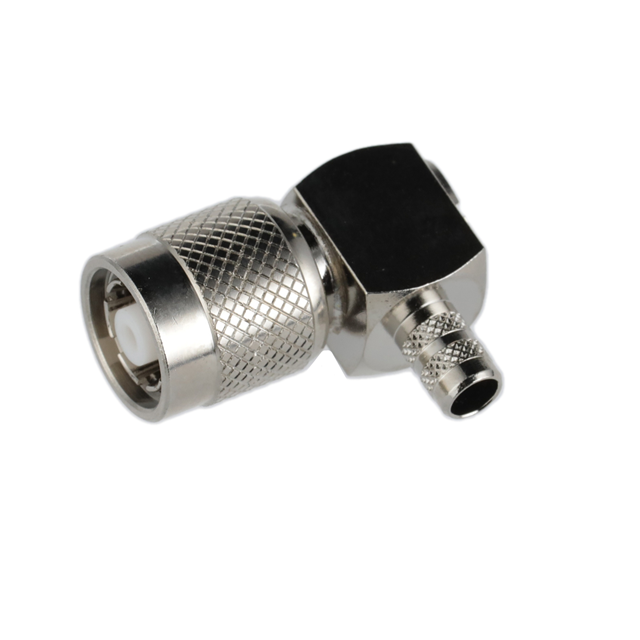

CONN RPTNC PLUG R/A 50OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN RPTNC PLUG R/A 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	122414RP

Body Finish	Nickel
Body Material	Brass
Cable Group	LMR-240, Belden 9258, RG-8X
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	RP-TNC
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Connector, 1 Ferrule, 1 End Cap
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Voltage Rating	Shield Termination	Body Material	Connector Style	Body Finish	Includes	Dielectric Material	Mating Cycles	Number of Ports	Center Contact Plating	Contact Termination	Mounting Type	Frequency - Max [Max]	Housing Color	Cable Group	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Material	Impedance	Connector Type
Amphenol RF 122414RP	500 V	Crimp	Brass	RP-TNC	Nickel	1 Connector 1 End Cap 1 Ferrule	Polytetrafluoroethylene (PTFE)	500	1	Gold	Solder	Free Hanging (In-Line) Right Angle	11 GHz	Silver	Belden 9258 LMR-240 RG-8X	-65 ░C	165 °C	Phosphor Bronze	50 Ohms	Female Socket Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RP-TNC Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line), Right Angle Solder
