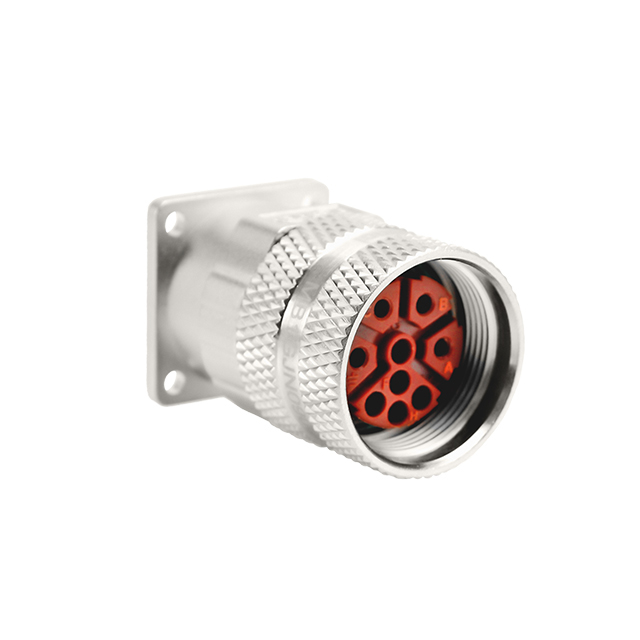

MB1GJN0900

Active

Amphenol Sine Systems Corp

CONN PLUG HSG FMALE 9POS PNL MT

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

CONN PLUG HSG FMALE 9POS PNL MT

Technical Specifications

Parameters and characteristics for this part

Specification	MB1GJN0900

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	2 mm, 1 mm
Contact Type	Crimp
Features	Coupling Nut
Housing Color	Silver
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	PE
Number of Positions [custom]	3
Number of Positions [custom]	5
Number of Positions [custom]	9
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M23-9
Shielding	Shielded
Type	For Female Sockets

Part	Features	Insert Material	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Shell Finish	Shell Size - Insert	Contact Shape	Shielding	Housing Color	Note	Material Flammability Rating	Ingress Protection	Mounting Feature	Contact Size	Number of Positions	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Connector Type	Type	Contact Type	Shell Material
Amphenol Sine Systems Corp MB1GJN0900	Coupling Nut	Polyamide (PA66) Nylon 6/6	Keyed	-20 C	130 °C	Nickel	M23-9	Circular	Shielded	Silver	Contacts Not Included	UL94 V-0	IP67 - Dust Tight Waterproof	Flange	1 mm 2 mm	PE	3	5	9	Plug Housing	For Female Sockets	Crimp	Zinc Die Cast

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 15.01

General part information

9 (5 + 3 Power + PE) Position Circular Connector Plug Housing Panel Mount Coupling Nut
