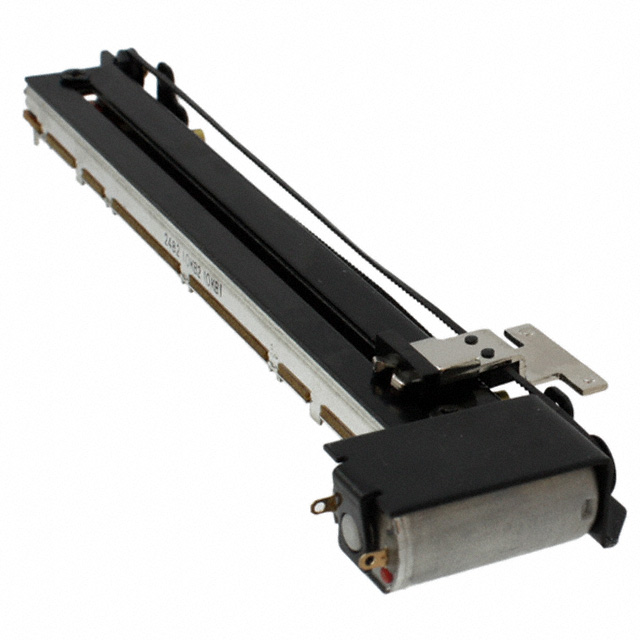

PSM01-081A-103B2
ActiveBourns Inc.
SLIDE POT 10K OHM 0.5W TOP 100MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PSM01-081A-103B2
ActiveBourns Inc.
SLIDE POT 10K OHM 0.5W TOP 100MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PSM01-081A-103B2 |
|---|---|
| Adjustment Type | Top |
| Fader Type | Motor |
| Mounting Type | Through Hole |
| Power (Watts) | 0.5 W |
| Power (Watts) | 0.5 W |
| Resistance | 10000 Ohms |
| Size / Dimension [x] | 152 mm |
| Size / Dimension [x] | 5.984 in |
| Size / Dimension [y] | 0.512 in |
| Size / Dimension [y] | 13 mm |
| Size / Dimension [z] | 1.378 " |
| Size / Dimension [z] | 35 mm |
| Tolerance | 20 % |
| Travel Range | 100 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 21.24 | |
| 10 | $ 21.48 | |||
| 25 | $ 17.74 | |||
| 70 | $ 15.35 | |||
| 140 | $ 14.55 | |||
| 280 | $ 14.01 | |||
| 560 | $ 13.06 | |||
Description
General part information
PSM01 Series
10 kOhms 0.5W, 1/2W Through Hole Slide Potentiometer Top Adjustment Type
