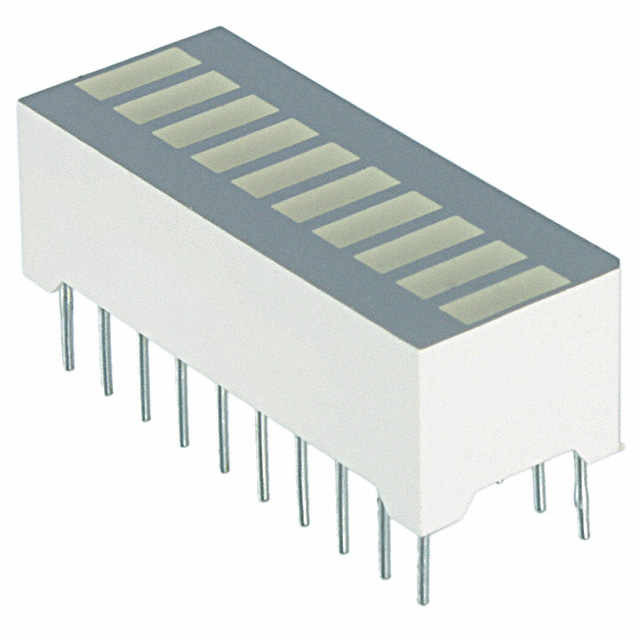

DC7G3HWA
ObsoleteKingbright
LED CBI 10-SEG GRN/RED VERT
DC7G3HWA
ObsoleteKingbright
LED CBI 10-SEG GRN/RED VERT
Description
General part information
DC7G3 Series
LED Circuit Board Indicator LED Circuit Board Indicator Bar - 10 Wide, DIP Green (x 7), Red (x 3) Diffused, White 2.2V Green, 2.25V Red 25mA Green, 25mA Red Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | DC7G3HWA |
|---|---|
| Color | Red, Green |
| Color Count | 3 count, 7 count |
| Configuration | Bar, DIP |
| Current (Green) | 25 mA |
| Current (Red) | 25 mA |
| Current Colors | Green, Red |
| Lens Type | White, Diffused |
| Millicandela Rating (Green) | 12 mcd |
| Millicandela Rating (Red) | 1.9 mcd |
| Millicandela Rating Colors | Red, Green |
| Mounting Type | Through Hole |
| Voltage Rating - Color | Red, Green |
| Voltage Rating (Green) | 2.2 V |
| Voltage Rating (Red) | 2.25 V |
| Wavelength - Peak (1) | 565 nm |
| Wavelength - Peak (2) | 700 nm |
| Wide | 10 |
