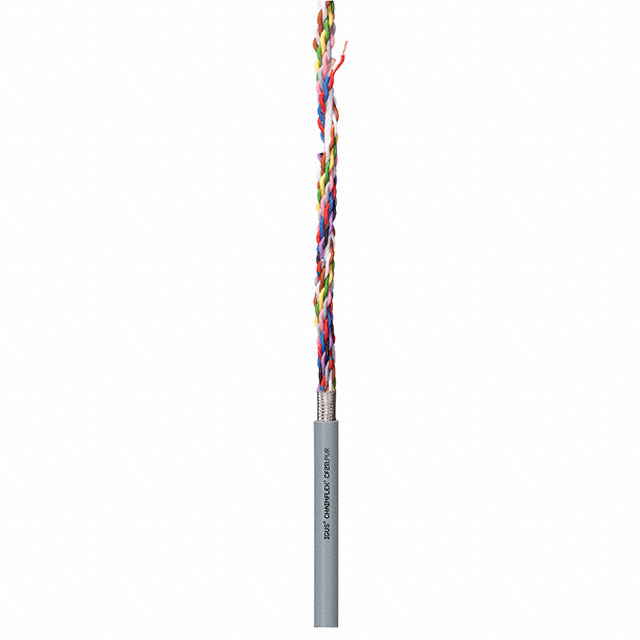

CF211-PUR-05-06-02
ActiveIgus
MULTI-PAIR 12CON 20AWG GRAY FEET
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CF211-PUR-05-06-02 | CF211 Series |
|---|---|---|
| Cable Type | Multi-Pair | Multi-Pair, Multi-Conductor |
| Conductor Insulation | Thermoplastic Elastomer (TPE) | Thermoplastic Elastomer (TPE) |
| Conductor Material | Copper, Bare | Copper, Bare, Copper, Tinned |
| Features | Flame Retardant, Oil Resistant, Abrasion Resistant | Flame Retardant, Oil Resistant, Abrasion Resistant |
| Jacket (Insulation) Diameter [diameter] | 11.51 mm | 5.99 - 15.49 mm |
| Jacket (Insulation) Diameter [diameter] | 0.453 " | 0.236 - 0.61 in |
| Jacket (Insulation) Material | Polyurethane (PU) | Poly-Vinyl Chloride (PVC), Polyurethane (PU) |
| Jacket Color | Gray | Gray, Green, Yellow |
| Length | Enter Number of Feet in Order Quantity | Enter Number of Feet in Order Quantity |
| Number of Conductors | 12 | 2 - 28 |
| Number of Conductors | - | 3 |
| Number of Conductors | - | 5 |
| Ratings | UL Style 20233 | UL Style 2464, UL Style 20233 |
| Shield Coverage | 90 %, 100 % | 80 - 100 % |
| Shield Material | Copper, Tinned, Aluminum | Copper, Tinned, Aluminum |
| Shield Type | Foil, Braid | Foil, Braid |
| Spool Size | - | 1000 ft |
| Spool Size | - | 304.8 m |
| Usage | - | Industrial, Data |
| Voltage | 300 V | 50 - 300 V |
| Wire Gauge | 20 AWG | 17 - 26 AWG |
| Wire Gauge | - | 20 AWG, 26 AWG |
CF211 Series
PVC300V 4PR/20AWG DATA CBL FEET
| Part | Number of Conductors | Shield Material | Spool Size | Spool Size | Conductor Insulation | Length | Voltage | Ratings | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Coverage | Jacket (Insulation) Material | Jacket Color | Shield Type | Cable Type | Features | Conductor Material | Number of Conductors [custom] | Number of Conductors [custom] | Wire Gauge | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Igus CF211-05-04-02 | 8 | Aluminum, Copper, Tinned | 1000 ft | 304.8 m | Thermoplastic Elastomer (TPE) | Enter Number of Feet in Order Quantity | 300 V | UL Style 2464 | 20 AWG | 9.5 mm | 0.374 in | 90 %, 100 % | Poly-Vinyl Chloride (PVC) | Gray | Braid, Foil | Multi-Pair | Flame Retardant, Oil Resistant | Copper, Bare | ||||
Igus CF211-017 | 16 | Aluminum, Copper, Tinned | Thermoplastic Elastomer (TPE) | Enter Number of Feet in Order Quantity | 50 V | 17 AWG, 26 AWG | 10.01 mm | 0.394 in | 80 %, 100 % | Poly-Vinyl Chloride (PVC) | Green, Yellow | Braid, Foil | Multi-Conductor | Flame Retardant, Oil Resistant | Copper, Tinned | |||||||
16 | Aluminum, Copper, Tinned | Thermoplastic Elastomer (TPE) | Enter Number of Feet in Order Quantity | 300 V | UL Style 20233 | 22 AWG | 11.99 mm | 0.472 in | 90 %, 100 % | Polyurethane (PU) | Gray | Braid, Foil | Multi-Pair | Abrasion Resistant, Flame Retardant, Oil Resistant | Copper, Bare | |||||||
Igus CF211-05-08-02 | 16 | Aluminum, Copper, Tinned | 1000 ft | 304.8 m | Thermoplastic Elastomer (TPE) | Enter Number of Feet in Order Quantity | 300 V | UL Style 2464 | 20 AWG | 13.01 mm | 0.512 in | 90 %, 100 % | Poly-Vinyl Chloride (PVC) | Gray | Braid, Foil | Multi-Pair | Flame Retardant, Oil Resistant | Copper, Bare | ||||
Igus CF211-019 | Aluminum, Copper, Tinned | Thermoplastic Elastomer (TPE) | Enter Number of Feet in Order Quantity | 50 V | 17 AWG, 24 AWG | 10.01 mm | 0.394 in | 80 %, 100 % | Poly-Vinyl Chloride (PVC) | Green, Yellow | Braid, Foil | Multi-Conductor | Flame Retardant, Oil Resistant | Copper, Tinned | 3 | 5 | ||||||
Igus CF211-03-08-02 | 16 | Aluminum, Copper, Tinned | 1000 ft | 304.8 m | Thermoplastic Elastomer (TPE) | Enter Number of Feet in Order Quantity | 300 V | UL Style 2464 | 22 AWG | 11.51 mm | 0.453 " | 90 %, 100 % | Poly-Vinyl Chloride (PVC) | Gray | Braid, Foil | Multi-Pair | Flame Retardant, Oil Resistant | Copper, Bare | ||||
Igus CF211-02-08-02 | 16 | Aluminum, Copper, Tinned | 1000 ft | 304.8 m | Thermoplastic Elastomer (TPE) | Enter Number of Feet in Order Quantity | 300 V | UL Style 2464 | 24 AWG | 10.49 mm | 0.413 in | 90 %, 100 % | Poly-Vinyl Chloride (PVC) | Gray | Braid, Foil | Multi-Pair | Flame Retardant, Oil Resistant | Copper, Bare | ||||
12 | Aluminum, Copper, Tinned | Thermoplastic Elastomer (TPE) | Enter Number of Feet in Order Quantity | 300 V | UL Style 20233 | 24 AWG | 8.99 mm | 0.354 in | 90 %, 100 % | Polyurethane (PU) | Gray | Braid, Foil | Multi-Pair | Abrasion Resistant, Flame Retardant, Oil Resistant | Copper, Bare | |||||||
Igus CF211-018 | 6 | Aluminum, Copper, Tinned | Thermoplastic Elastomer (TPE) | Enter Number of Feet in Order Quantity | 50 V | 20 AWG, 24 AWG | 6.5 mm | 0.256 in | 80 %, 100 % | Poly-Vinyl Chloride (PVC) | Green, Yellow | Braid, Foil | Multi-Conductor | Flame Retardant, Oil Resistant | Copper, Tinned | |||||||
4 | Aluminum, Copper, Tinned | Thermoplastic Elastomer (TPE) | Enter Number of Feet in Order Quantity | 300 V | UL Style 20233 | 24 AWG | 5.99 mm | 0.236 in | 90 %, 100 % | Polyurethane (PU) | Gray | Braid, Foil | Multi-Pair | Abrasion Resistant, Flame Retardant, Oil Resistant | Copper, Bare |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.15 | |
| 500 | $ 8.79 | |||
| 1000 | $ 8.45 | |||
Description
General part information
CF211 Series
12 (6 Pair Twisted) Conductor Multi-Pair Cable Gray 20 AWG Foil, Braid Enter Number of Feet in Order Quantity
