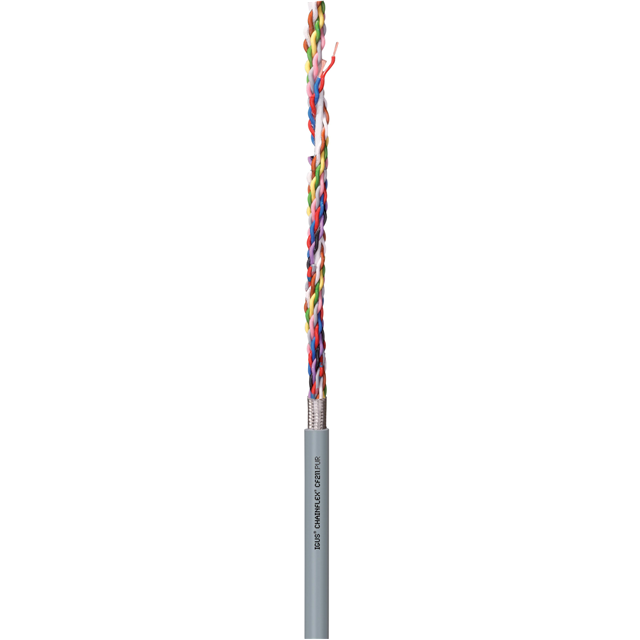

CF211-PUR-02-06-02

Active

Igus

MULTI-PAIR 12CON 24AWG GRAY FEET

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CF211-PUR-02-06-02

Active

Igus

MULTI-PAIR 12CON 24AWG GRAY FEET

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.55
		100	$ 7.25
		500	$ 6.96
		1000	$ 6.08

Description

General part information

CF211 Series

12 (6 Pair Twisted) Conductor Multi-Pair Cable Gray 24 AWG Foil, Braid Enter Number of Feet in Order Quantity

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CF211-PUR-02-06-02	CF211 Series

Cable Type	Multi-Pair	Multi-Pair, Multi-Conductor
Conductor Insulation	Thermoplastic Elastomer (TPE)	Thermoplastic Elastomer (TPE)
Conductor Material	Copper, Bare	Copper, Bare, Copper, Tinned
Features	Flame Retardant, Oil Resistant, Abrasion Resistant	Flame Retardant, Oil Resistant, Abrasion Resistant
Jacket (Insulation) Diameter [diameter]	0.354 in	0.236 - 0.61 in
Jacket (Insulation) Diameter [diameter]	8.99 mm	5.99 - 15.49 mm
Jacket (Insulation) Material	Polyurethane (PU)	Poly-Vinyl Chloride (PVC), Polyurethane (PU)
Jacket Color	Gray	Gray, Green, Yellow
Length	Enter Number of Feet in Order Quantity	Enter Number of Feet in Order Quantity
Number of Conductors	12	2 - 28
Number of Conductors	-	3
Number of Conductors	-	5
Ratings	UL Style 20233	UL Style 2464, UL Style 20233
Shield Coverage	90 %, 100 %	80 - 100 %
Shield Material	Copper, Tinned, Aluminum	Copper, Tinned, Aluminum
Shield Type	Foil, Braid	Foil, Braid
Spool Size	-	1000 ft
Spool Size	-	304.8 m
Usage	-	Industrial, Data
Voltage	300 V	50 - 300 V
Wire Gauge	24 AWG	17 - 26 AWG
Wire Gauge	-	20 AWG, 26 AWG

CF211 Series

PVC300V 4PR/20AWG DATA CBL FEET

Part	Number of Conductors	Shield Material	Spool Size	Spool Size	Conductor Insulation	Length	Voltage	Ratings	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Coverage	Jacket (Insulation) Material	Jacket Color	Shield Type	Cable Type	Features	Conductor Material	Number of Conductors [custom]	Number of Conductors [custom]
Igus CF211-05-04-02	8	Aluminum, Copper, Tinned	1000 ft	304.8 m	Thermoplastic Elastomer (TPE)	Enter Number of Feet in Order Quantity	300 V	UL Style 2464	20 AWG	9.5 mm	0.374 in	90 %, 100 %	Poly-Vinyl Chloride (PVC)	Gray	Braid, Foil	Multi-Pair	Flame Retardant, Oil Resistant	Copper, Bare
Igus CF211-017	16	Aluminum, Copper, Tinned			Thermoplastic Elastomer (TPE)	Enter Number of Feet in Order Quantity	50 V		17 AWG, 26 AWG	10.01 mm	0.394 in	80 %, 100 %	Poly-Vinyl Chloride (PVC)	Green, Yellow	Braid, Foil	Multi-Conductor	Flame Retardant, Oil Resistant	Copper, Tinned
Igus CF211-PUR-03-08-02	16	Aluminum, Copper, Tinned			Thermoplastic Elastomer (TPE)	Enter Number of Feet in Order Quantity	300 V	UL Style 20233	22 AWG	11.99 mm	0.472 in	90 %, 100 %	Polyurethane (PU)	Gray	Braid, Foil	Multi-Pair	Abrasion Resistant, Flame Retardant, Oil Resistant	Copper, Bare
Igus CF211-05-08-02	16	Aluminum, Copper, Tinned	1000 ft	304.8 m	Thermoplastic Elastomer (TPE)	Enter Number of Feet in Order Quantity	300 V	UL Style 2464	20 AWG	13.01 mm	0.512 in	90 %, 100 %	Poly-Vinyl Chloride (PVC)	Gray	Braid, Foil	Multi-Pair	Flame Retardant, Oil Resistant	Copper, Bare
Igus CF211-019		Aluminum, Copper, Tinned			Thermoplastic Elastomer (TPE)	Enter Number of Feet in Order Quantity	50 V		17 AWG, 24 AWG	10.01 mm	0.394 in	80 %, 100 %	Poly-Vinyl Chloride (PVC)	Green, Yellow	Braid, Foil	Multi-Conductor	Flame Retardant, Oil Resistant	Copper, Tinned	3	5
Igus CF211-03-08-02	16	Aluminum, Copper, Tinned	1000 ft	304.8 m	Thermoplastic Elastomer (TPE)	Enter Number of Feet in Order Quantity	300 V	UL Style 2464	22 AWG	11.51 mm	0.453 "	90 %, 100 %	Poly-Vinyl Chloride (PVC)	Gray	Braid, Foil	Multi-Pair	Flame Retardant, Oil Resistant	Copper, Bare
Igus CF211-02-08-02	16	Aluminum, Copper, Tinned	1000 ft	304.8 m	Thermoplastic Elastomer (TPE)	Enter Number of Feet in Order Quantity	300 V	UL Style 2464	24 AWG	10.49 mm	0.413 in	90 %, 100 %	Poly-Vinyl Chloride (PVC)	Gray	Braid, Foil	Multi-Pair	Flame Retardant, Oil Resistant	Copper, Bare
Igus CF211-PUR-02-06-02	12	Aluminum, Copper, Tinned			Thermoplastic Elastomer (TPE)	Enter Number of Feet in Order Quantity	300 V	UL Style 20233	24 AWG	8.99 mm	0.354 in	90 %, 100 %	Polyurethane (PU)	Gray	Braid, Foil	Multi-Pair	Abrasion Resistant, Flame Retardant, Oil Resistant	Copper, Bare
Igus CF211-018	6	Aluminum, Copper, Tinned			Thermoplastic Elastomer (TPE)	Enter Number of Feet in Order Quantity	50 V		20 AWG, 24 AWG	6.5 mm	0.256 in	80 %, 100 %	Poly-Vinyl Chloride (PVC)	Green, Yellow	Braid, Foil	Multi-Conductor	Flame Retardant, Oil Resistant	Copper, Tinned
Igus CF211-PUR-02-02-02	4	Aluminum, Copper, Tinned			Thermoplastic Elastomer (TPE)	Enter Number of Feet in Order Quantity	300 V	UL Style 20233	24 AWG	5.99 mm	0.236 in	90 %, 100 %	Polyurethane (PU)	Gray	Braid, Foil	Multi-Pair	Abrasion Resistant, Flame Retardant, Oil Resistant	Copper, Bare
