M80-4850642

Active

Harwin Inc.

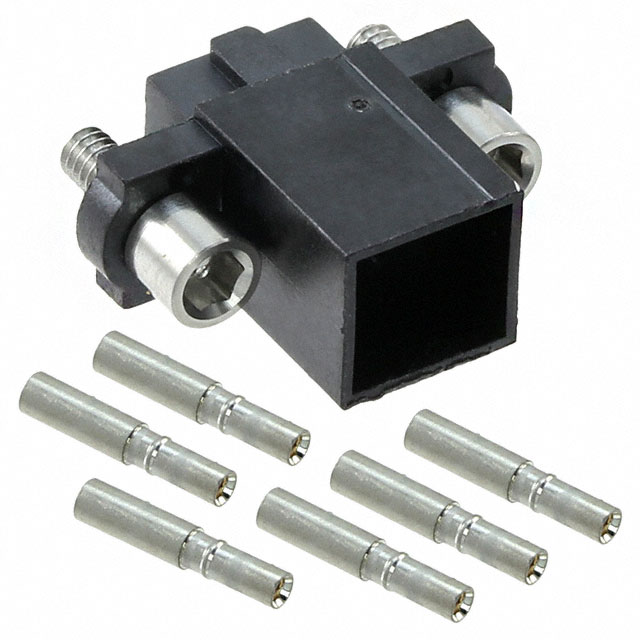

3+3 POS. FEMALE DIL 22AWG CABLE CONN. KIT, EXTENDED WALL, JACKSCREWS ROHS COMPLIANT: YES

M80-4850642

Active

Harwin Inc.

3+3 POS. FEMALE DIL 22AWG CABLE CONN. KIT, EXTENDED WALL, JACKSCREWS ROHS COMPLIANT: YES

Description Specifications Series Pricing CAD Documents

Description

General part information

M80-485 Series

6 Position Rectangular Receptacle Connector Crimp Galvanized 22 AWG

Technical Specifications

Parameters and characteristics for this part

Specification	M80-4850642

Cable Termination	Crimp
Color	Black
Connector Type	Receptacle
Contact Finish	Gold, Galvanized
Contact Finish Thickness	11.8 µin
Contact Type	Female Socket
Fastening Type	Screw Lock
Features	Jackscrews, Polarizing Key, Potting Wall
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Number of Rows	2
Pitch	0.079 in
Row Spacing	0.079 in
Wire Gauge	22 AWG
Wire Type	Discrete

M80-485 Series

Part	Wire Type	Row Spacing	Contact Finish	Wire Gauge	Connector Type	Number of Positions	Mounting Type	Fastening Type	Color	Contact Type	Pitch	Cable Termination	Features	Number of Rows	Contact Finish Thickness
Harwin Inc. M80-4852042	Discrete	0.079 in	Galvanized Gold	22 AWG	Receptacle	20	Free Hanging (In-Line)	Screw Lock	Black	Female Socket	0.079 in	Crimp	Jackscrews Polarizing Key Potting Wall	2	11.8 µin
Harwin Inc. M80-4852642	Discrete	0.079 in	Galvanized Gold	22 AWG	Receptacle	26	Free Hanging (In-Line)	Screw Lock	Black	Female Socket	0.079 in	Crimp	Jackscrews Polarizing Key Potting Wall	2	11.8 µin
Harwin Inc. M80-4854242	Discrete	0.079 in	Galvanized Gold	22 AWG	Receptacle	42	Free Hanging (In-Line)	Screw Lock	Black	Female Socket	0.079 in	Crimp	Jackscrews Polarizing Key Potting Wall	2	11.8 µin
Harwin Inc. M80-4851242	Discrete	0.079 in	Galvanized Gold	22 AWG	Receptacle	12	Free Hanging (In-Line)	Screw Lock	Black	Female Socket	0.079 in	Crimp	Jackscrews Polarizing Key Potting Wall	2	11.8 µin
Harwin Inc. M80-4851042	Discrete	0.079 in	Galvanized Gold	22 AWG	Receptacle	10	Free Hanging (In-Line)	Screw Lock	Black	Female Socket	0.079 in	Crimp	Jackscrews Polarizing Key Potting Wall	2	11.8 µin
Harwin Inc. M80-4851805	Discrete	0.079 in	Galvanized Gold	22 AWG	Receptacle	18	Free Hanging (In-Line)	Screw Lock	Black	Female Socket	0.079 in	Crimp	Jackscrews Polarizing Key Potting Wall	2	11.8 µin
Harwin Inc. M80-4850642	Discrete	0.079 in	Galvanized Gold	22 AWG	Receptacle	6	Free Hanging (In-Line)	Screw Lock	Black	Female Socket	0.079 in	Crimp	Jackscrews Polarizing Key Potting Wall	2	11.8 µin
Harwin Inc. M80-4854205	Discrete	0.079 in	Galvanized Gold	22 AWG	Receptacle	42	Free Hanging (In-Line)	Screw Lock	Black	Female Socket	0.079 in	Crimp	Jackscrews Polarizing Key Potting Wall	2	11.8 µin
Harwin Inc. M80-4852005A	Discrete	0.079 in	Galvanized Gold	22 AWG	Receptacle	20	Free Hanging (In-Line)	Screw Lock	Black	Female Socket	0.079 in	Crimp	Jackscrews Polarizing Key Potting Wall	2	11.8 µin
Harwin Inc. M80-4851442	Discrete	0.079 in	Galvanized Gold	22 AWG	Receptacle	14	Free Hanging (In-Line)	Screw Lock	Black	Female Socket	0.079 in	Crimp	Jackscrews Polarizing Key Potting Wall	2	11.8 µin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

M80-4850642 | Datasheet

M80-0110001

M80, M83 Series Spec Sheet

Datasheet

M80-001
