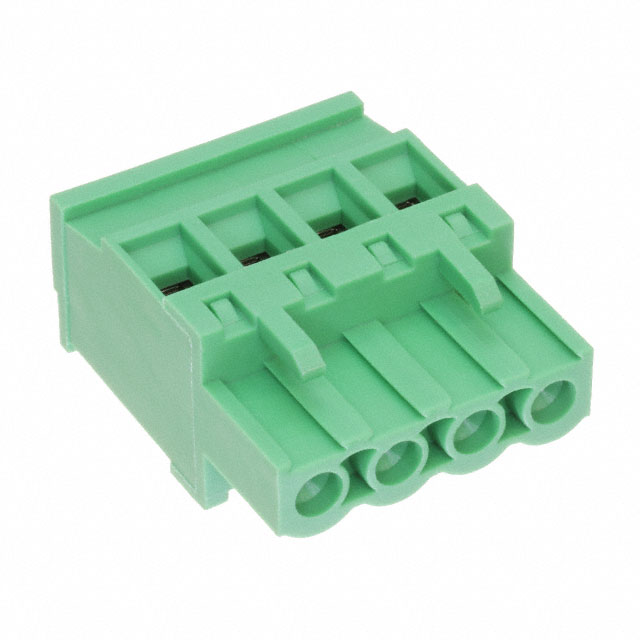

EB9A-04-C

Active

Adam Tech

EURO BLOCK 4P

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Medical Industry Brochure +2

EB9A-04-C

Active

Adam Tech

EURO BLOCK 4P

Deep-Dive with AI

DocumentsDatasheet Medical Industry Brochure +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EB9A-04-C

Color	Green
Contact Material	Brass
Contact Mating Finish	Nickel
Features	Retention Latches (Wire Side)
Insulation Height	1.024 "
Insulation Height	26.01 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Plug Wire Entry	90 °
Positions Per Level	4
Screw Size	M3
Termination Style	Screw - Leaf Spring, Wire Guard
Torque - Screw	4.4 Lb-In
Torque - Screw	0.5 Nm
Type	Plug, Female Sockets
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	28 AWG
Wire Gauge or Range - AWG [Min]	14 AWG
Wire Gauge or Range - mm˛	2.5 mm˛
Wire Strip Length [Max]	8 mm
Wire Strip Length [Min]	7 mm

EB9A Series

Part	Number of Levels	Wire Gauge or Range - mm˛	Type	Color	Material Flammability Rating	Contact Material	Termination Style	Wire Strip Length [Min]	Wire Strip Length [Max]	Positions Per Level	Pitch [x]	Pitch [x]	Torque - Screw	Torque - Screw	Number of Positions	Mounting Type	Screw Size	Operating Temperature [Min]	Operating Temperature [Max]	Plug Wire Entry	Insulation Height	Insulation Height	Features	Contact Mating Finish	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Voltage - UL
Adam Tech EB9A-04-D	1	2.5 mm˛	Plug Female Sockets	Green	UL94 V-0	Brass	Screw - Leaf Spring Wire Guard	7 mm	8 mm	4	0.2 in	5.08 mm	4.4 Lb-In	0.5 Nm	4	Free Hanging (In-Line)	M3	-40 °C	105 ░C	90 °	1.024 "	26.01 mm	Retention Latches (Wire Side)	Nickel	14 AWG	28 AWG	300 V
Adam Tech EB9A-04-C	1	2.5 mm˛	Plug Female Sockets	Green	UL94 V-0	Brass	Screw - Leaf Spring Wire Guard	7 mm	8 mm	4	0.197 in	5 mm	4.4 Lb-In	0.5 Nm	4	Free Hanging (In-Line)	M3	-40 °C	105 ░C	90 °	1.024 "	26.01 mm	Retention Latches (Wire Side)	Nickel	14 AWG	28 AWG	300 V
Adam Tech EB9A-05-D	1	2.5 mm˛	Plug Female Sockets	Green	UL94 V-0	Brass	Screw - Leaf Spring Wire Guard	7 mm	8 mm	5	0.2 in	5.08 mm	4.4 Lb-In	0.5 Nm		Free Hanging (In-Line)	M3	-40 °C	105 ░C	90 °	1.024 "	26.01 mm	Retention Latches (Wire Side)	Nickel	14 AWG	28 AWG	300 V
Adam Tech EB9A-05-C	1	2.5 mm˛	Plug Female Sockets	Green	UL94 V-0	Brass	Screw - Leaf Spring Wire Guard	7 mm	8 mm	5	0.197 in	5 mm	4.4 Lb-In	0.5 Nm		Free Hanging (In-Line)	M3	-40 °C	105 ░C	90 °	1.024 "	26.01 mm	Retention Latches (Wire Side)	Nickel	14 AWG	28 AWG	300 V
Adam Tech EB9A-02-D	1	2.5 mm˛	Plug Female Sockets	Green	UL94 V-0	Brass	Screw - Leaf Spring Wire Guard	7 mm	8 mm	2	0.2 in	5.08 mm	4.4 Lb-In	0.5 Nm	2	Free Hanging (In-Line)	M3	-40 °C	105 ░C	90 °	1.024 "	26.01 mm	Retention Latches (Wire Side)	Nickel	14 AWG	28 AWG	300 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 2.23
		10	$ 1.34
		25	$ 1.17

Description

General part information

EB9A Series

4 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 90° Free Hanging (In-Line)
