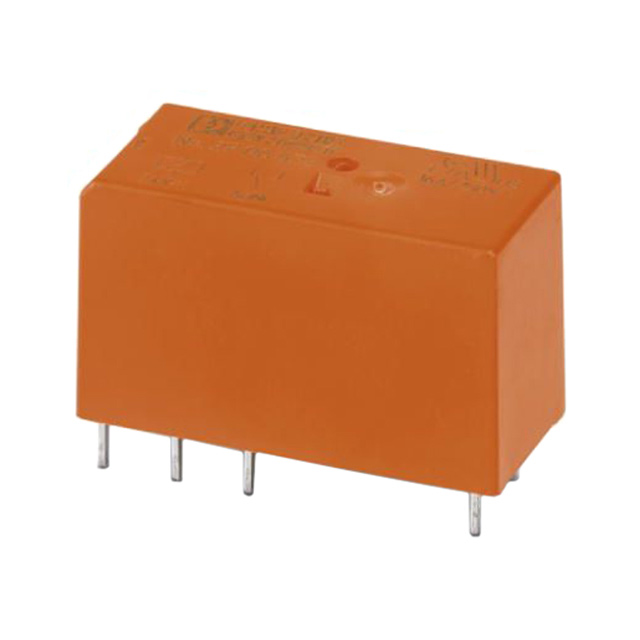

RELAY GEN PURPOSE SPDT 16A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2908822
ActivePhoenix Contact
RELAY GEN PURPOSE SPDT 16A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2908822 | 29088 Series |
|---|---|---|
| Approval Agency | cULus, EAC, UR | cULus, EAC, UR |
| Coil Current | 17 mA | 4.1 - 33 mA |
| Coil Resistance | 1.4 kOhms | 1.4 - 363.6 kOhms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 24 VDC | 12 - 110 VDC |
| Contact Form | SPDT (1 Form C) | SPDT (1 Form C), DPDT (2 Form C) |
| Contact Material | Silver Nickel (AgNi) | Silver Nickel (AgNi) |
| Contact Rating (Current) | 16 A | 8 - 16 A |
| Mounting Type | Through Hole | Through Hole |
| Operate Time | 7 ms | 7 ms |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Relay Type | General Purpose | General Purpose |
| Release Time | 3 ms | 3 ms |
| Seal Rating | Sealed - Fully | Sealed - Fully |
| Switching Voltage | 250 VAC, 250 VDC | 250 VAC |
| Termination Style | PC Pin | PC Pin |
29088 Series
RELAY GEN PURPOSE SPDT 16A 24V
| Part | Coil Voltage | Termination Style | Mounting Type | Contact Form | Approval Agency | Coil Type | Relay Type | Contact Rating (Current) | Coil Current | Operate Time | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Seal Rating | Coil Resistance | Switching Voltage | Release Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2908822 | 24 VDC | PC Pin | Through Hole | SPDT (1 Form C) | cULus, EAC, UR | Non Latching | General Purpose | 16 A | 17 mA | 7 ms | 85 °C | -40 °C | Silver Nickel (AgNi) | Sealed - Fully | 1.4 kOhms | 250 VAC, 250 VDC | 3 ms |
Phoenix Contact 2908821 | 12 VDC | PC Pin | Through Hole | SPDT (1 Form C) | cULus, EAC, UR | Non Latching | General Purpose | 16 A | 33 mA | 7 ms | 85 °C | -40 °C | Silver Nickel (AgNi) | 363.6 Ohms | 250 VAC, 250 VDC | 3 ms | |
Phoenix Contact 2908824 | 110 VDC | PC Pin | Through Hole | DPDT (2 Form C) | cULus, EAC, UR | Non Latching | General Purpose | 8 A | 4.1 mA | 7 ms | 85 °C | -40 °C | Silver Nickel (AgNi) | 26.8 kOhms | 250 VAC, 250 VDC | 3 ms | |
Phoenix Contact 2908823 | 110 VDC | PC Pin | Through Hole | SPDT (1 Form C) | cULus, EAC, UR | Non Latching | General Purpose | 16 A | 4.1 mA | 7 ms | 85 °C | -40 °C | Silver Nickel (AgNi) | 26.8 kOhms | 250 VAC, 250 VDC | 3 ms |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.89 | |
Description
General part information
29088 Series
General Purpose Relay SPDT (1 Form C) 24VDC Coil Through Hole
