2908821

Active

Phoenix Contact

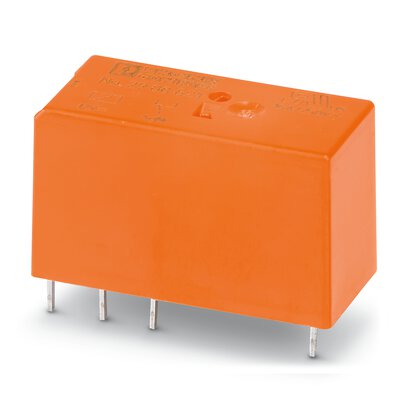

RELAY GEN PURPOSE SPDT 16A 12V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE SPDT 16A 12V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay SPDT (1 Form C) 12VDC Coil Through Hole

Technical documentation and resources

Parameters and characteristics commom to parts in this series

RELAY GEN PURPOSE SPDT 16A 24V

Part	Coil Voltage	Termination Style	Mounting Type	Contact Form	Approval Agency	Coil Type	Relay Type	Contact Rating (Current)	Coil Current	Operate Time	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Seal Rating	Coil Resistance	Switching Voltage	Release Time
Phoenix Contact 2908822	24 VDC	PC Pin	Through Hole	SPDT (1 Form C)	cULus, EAC, UR	Non Latching	General Purpose	16 A	17 mA	7 ms	85 °C	-40 °C	Silver Nickel (AgNi)	Sealed - Fully	1.4 kOhms	250 VAC, 250 VDC	3 ms
Phoenix Contact 2908821	12 VDC	PC Pin	Through Hole	SPDT (1 Form C)	cULus, EAC, UR	Non Latching	General Purpose	16 A	33 mA	7 ms	85 °C	-40 °C	Silver Nickel (AgNi)		363.6 Ohms	250 VAC, 250 VDC	3 ms
Phoenix Contact 2908824	110 VDC	PC Pin	Through Hole	DPDT (2 Form C)	cULus, EAC, UR	Non Latching	General Purpose	8 A	4.1 mA	7 ms	85 °C	-40 °C	Silver Nickel (AgNi)		26.8 kOhms	250 VAC, 250 VDC	3 ms
Phoenix Contact 2908823	110 VDC	PC Pin	Through Hole	SPDT (1 Form C)	cULus, EAC, UR	Non Latching	General Purpose	16 A	4.1 mA	7 ms	85 °C	-40 °C	Silver Nickel (AgNi)		26.8 kOhms	250 VAC, 250 VDC	3 ms
