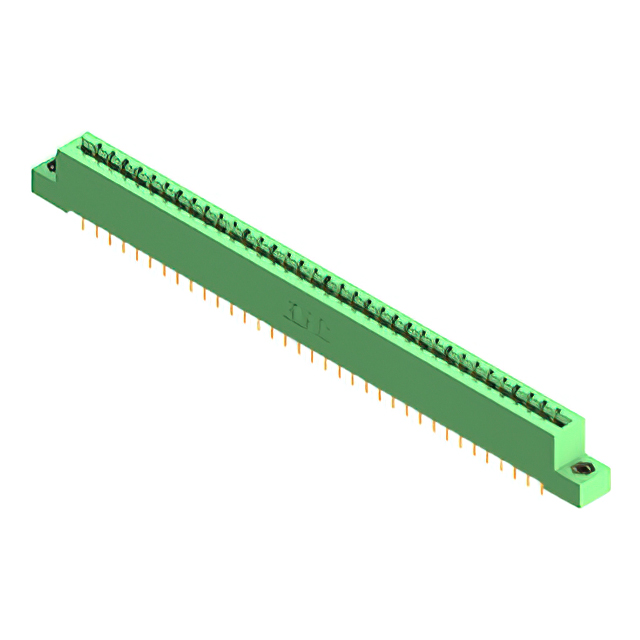

837-070-524-208
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 70POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
837-070-524-208
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 70POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 837-070-524-208 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 70 |
| Number of Positions/Bay/Row [custom] | 35 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
837-070 Series
...
| Part | Termination | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Pitch [x] | Pitch [x] | Number of Rows | Gender | Contact Finish | Termination Rows | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Card Type | Contact Type | Features | Contact Material | Read Out | Mounting Type | Color | Number of Positions/Bay/Row [custom] | Flange Feature | Operating Temperature [Max] | Operating Temperature [Min] | Material - Insulation | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Solder | 70 | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | 2 | Female | Gold | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Cantilever | Card Extender | Copper Alloy | Dual | Board Edge Straddle Mount | Green | 35 | 4-40 Flush Mount Threaded Insert Top Opening | 125 °C | -40 °C | Diallyl Phthalate (DAP) | ||||
EDAC Inc. | Solder | 70 | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | 2 | Female | Gold | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Cantilever | Copper Alloy | Dual | Through Hole | Green | 35 | 4-40 Threaded Insert Top Mount Opening | 125 °C | -40 °C | Diallyl Phthalate (DAP) | |||||
EDAC Inc. | Solder | 70 | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | 2 | Female | Gold | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Cantilever | Copper Alloy | Dual | Through Hole Right Angle | Green | 35 | Flush Mount Side Opening Unthreaded | 125 °C | -40 °C | Diallyl Phthalate (DAP) | 3.25 mm | 0.128 " | |||
EDAC Inc. | Wire Wrap | 70 | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | 2 | Female | Gold | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Cantilever | Copper Alloy | Dual | Through Hole | Green | 35 | 4-40 Flush Mount Threaded Insert Top Opening | 125 °C | -40 °C | Diallyl Phthalate (DAP) | |||||
EDAC Inc. | Solder | 70 | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | 2 | Female | Gold | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Cantilever | Card Extender | Copper Alloy | Dual | Board Edge Straddle Mount | Green | 35 | Side Mount Opening Unthreaded | 125 °C | -40 °C | Diallyl Phthalate (DAP) | 3.25 mm | 0.128 in | ||
EDAC Inc. | Wire Wrap | 70 | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | 2 | Female | Gold | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Cantilever | Copper Alloy | Dual | Through Hole | Green | 35 | Top Mount Opening Unthreaded | 125 °C | -40 °C | Diallyl Phthalate (DAP) | 3.96 mm | 0.156 in | |||
EDAC Inc. | Solder | 70 | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | 2 | Female | Gold | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Cantilever | Copper Alloy | Dual | Through Hole | Green | 35 | 4-40 Flush Mount Threaded Insert Top Opening | 125 °C | -40 °C | Diallyl Phthalate (DAP) | |||||
EDAC Inc. | Solder | 70 | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | 2 | Female | Gold | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Cantilever | Card Extender | Copper Alloy | Dual | Board Edge Straddle Mount | Green | 35 | 4-40 Threaded Insert Top Mount Opening | 125 °C | -40 °C | Diallyl Phthalate (DAP) | ||||
EDAC Inc. | Solder Eyelet(s) | 70 | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | 2 | Female | Gold | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Cantilever | Copper Alloy | Dual | Through Hole | Green | 35 | 125 °C | -40 °C | Diallyl Phthalate (DAP) | ||||||
EDAC Inc. | Wire Wrap | 70 | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | 2 | Female | Gold | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Cantilever | Copper Alloy | Dual | Through Hole | Green | 35 | Flush Mount Top Opening Unthreaded | 125 °C | -40 °C | Diallyl Phthalate (DAP) | 3.96 mm | 0.156 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
837-070 Series
70 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
