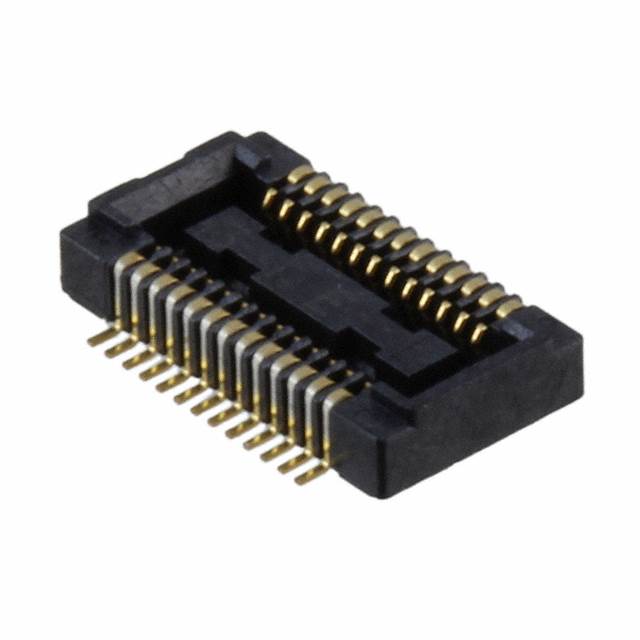

AXK726147G

Obsolete

Panasonic Electric Works

CONN SOCKET 26POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

CONN SOCKET 26POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXK726147G

Connector Type	Center Strip, Socket, Outer Edge Contacts
Contact Finish	Gold
Height Above Board	0.059 in
Height Above Board	1.5 mm
Mated Stacking Heights	1.5 mm
Mounting Type	Surface Mount
Number of Positions	26
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Contact Finish	Connector Type	Number of Rows	Number of Positions	Mated Stacking Heights	Pitch [x]	Pitch [x]	Mounting Type	Height Above Board	Height Above Board
Panasonic Electric Works AXK726147G	Gold	Center Strip Outer Edge Contacts Socket	2	26	1.5 mm	0.016 in	0.4 mm	Surface Mount	0.059 in	1.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

26 Position Connector Socket, Center Strip, Outer Edge Contacts Surface Mount Gold
