A7MXG-0906M
ActiveTE Connectivity AMP Connectors
DSUB CABL-AMP09G/ AE10M / X
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A7MXG-0906M | A7MXG Series |
|---|---|---|
| 1st Connector | Plug, Male Pins | Plug, Male Pins |
| 2nd Connector | Individual Wire Leads | Individual Wire Leads |
| Color | Ribbon, Multiple | Ribbon, Multiple |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 10 Áin | 10 Áin |
| Contact Finish Thickness | 0.25 Ám | 0.25 Ám |
| Length | 6 ft | 6 - 10 ft |
| Length | 1.83 m | 1.83 - 3.05 m |
| Number of Positions | 9 | 9 - 37 |
| Shielding | Unshielded | Unshielded |
| Type | DB9 | DB37, DB15, DB25, DB9 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
A7MXG Series
DSUB CABL- AMP37G/ AE37M / X
| Part | Number of Positions | Type | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Color | 1st Connector | Length | Length | Shielding | 2nd Connector |
|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors A7MXG-3710M | 37 | DB37 | 10 Áin | 0.25 Ám | Gold | Multiple, Ribbon | Plug, Male Pins | 10 ft | 3.05 m | Unshielded | Individual Wire Leads |
TE Connectivity AMP Connectors A7MXG-3710G | 37 | DB37 | 10 Áin | 0.25 Ám | Gold | Plug, Male Pins | 10 ft | 3.05 m | Unshielded | Individual Wire Leads | |
TE Connectivity AMP Connectors A7MXG-1510G | 15 | DB15 | 10 Áin | 0.25 Ám | Gold | Plug, Male Pins | 10 ft | 3.05 m | Unshielded | Individual Wire Leads | |
TE Connectivity AMP Connectors A7MXG-3706M | 37 | DB37 | 10 Áin | 0.25 Ám | Gold | Multiple, Ribbon | Plug, Male Pins | 6 ft | 1.83 m | Unshielded | Individual Wire Leads |
TE Connectivity AMP Connectors A7MXG-2506M | DB25 | 10 Áin | 0.25 Ám | Gold | Multiple, Ribbon | Plug, Male Pins | 6 ft | 1.83 m | Unshielded | Individual Wire Leads | |
TE Connectivity AMP Connectors A7MXG-0906M | 9 | DB9 | 10 Áin | 0.25 Ám | Gold | Multiple, Ribbon | Plug, Male Pins | 6 ft | 1.83 m | Unshielded | Individual Wire Leads |
TE Connectivity AMP Connectors A7MXG-1510M | 15 | DB15 | 10 Áin | 0.25 Ám | Gold | Multiple, Ribbon | Plug, Male Pins | 10 ft | 3.05 m | Unshielded | Individual Wire Leads |
TE Connectivity AMP Connectors A7MXG-3706G | 37 | DB37 | 10 Áin | 0.25 Ám | Gold | Plug, Male Pins | 6 ft | 1.83 m | Unshielded | Individual Wire Leads | |
TE Connectivity AMP Connectors A7MXG-2506G | DB25 | 10 Áin | 0.25 Ám | Gold | Plug, Male Pins | 6 ft | 1.83 m | Unshielded | Individual Wire Leads | ||
TE Connectivity AMP Connectors A7MXG-2510G | DB25 | 10 Áin | 0.25 Ám | Gold | Plug, Male Pins | 10 ft | 3.05 m | Unshielded | Individual Wire Leads |
Description
General part information
A7MXG Series

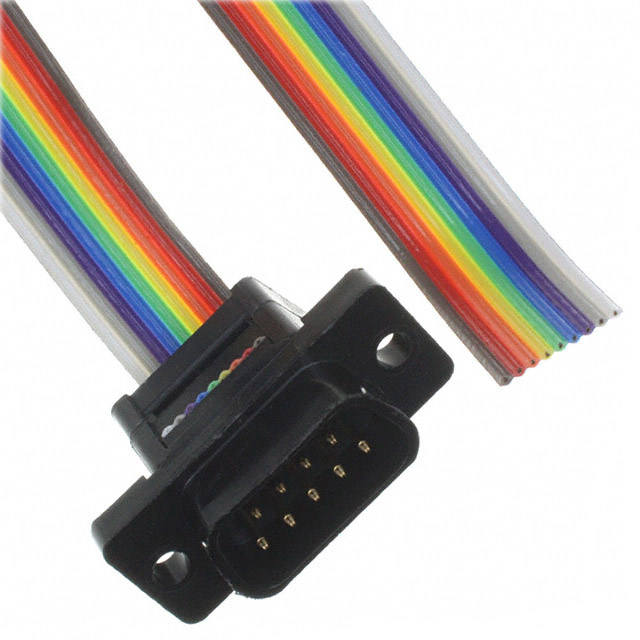

D-Sub Cable Assembly DB9 Multiple, Ribbon 6.00' (1.83m) Plug, Male Pins to Individual Wire Leads Unshielded
